Panoramic View of the Wind and Rain Playground
Photo Credit: Summer Solstice
This project is situated in Yueyang County, Hunan Province. To commemorate the 60th anniversary of their alma mater, the donor has funded the construction of a new wind and rain playground on the campus of Yueyang County No. 3 Middle School. This facility also doubles as a lecture hall.
The design aims to provide students with an enhanced space for sports activities while injecting vitality into the otherwise orderly and formal campus environment.

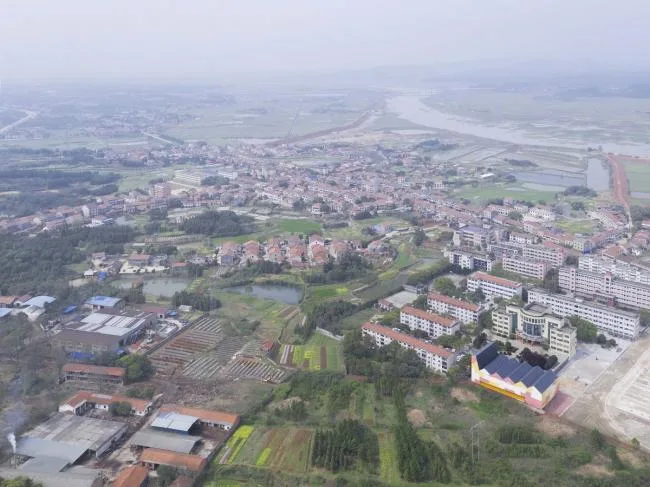

School Grounds Near Farmland Villages
Photo Credit: Summer Solstice
Aerial View of the Site
Photo Credit: Summer Solstice
Northwest Square
Photo Credit: Summer Solstice

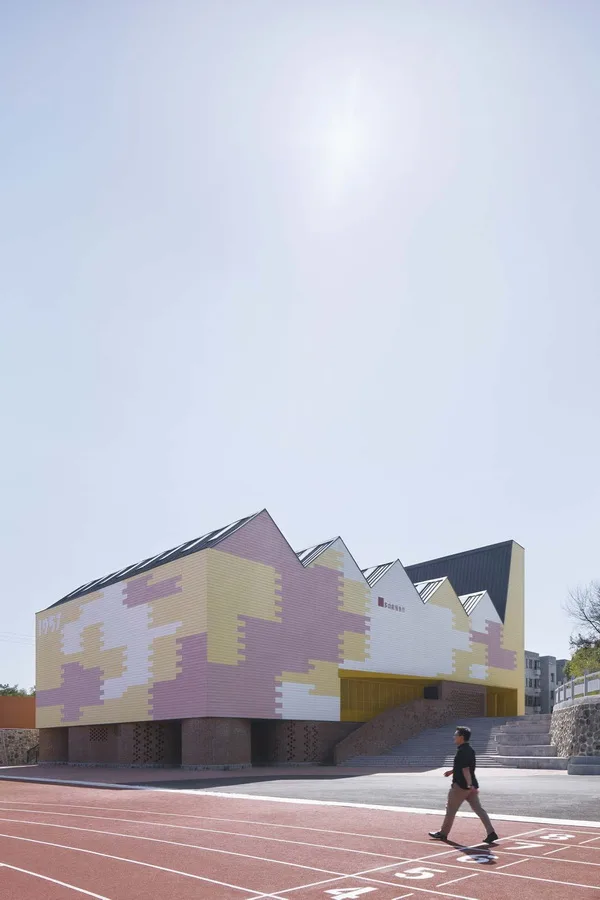

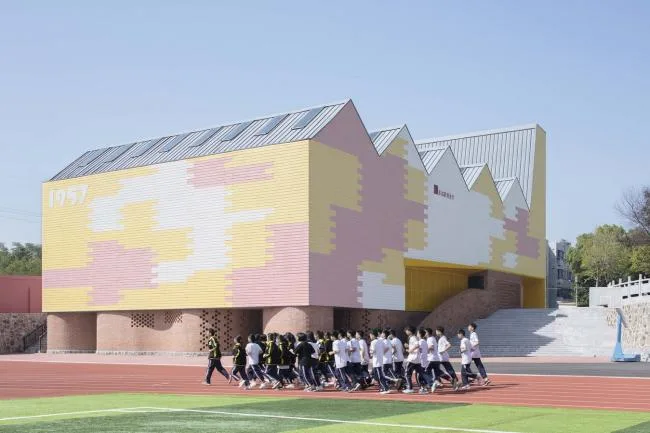

View Facing the Playground
Photo Credit: Summer Solstice
The newly constructed wind and rain playground is located at the southwest corner of the campus. A height difference exists between the main school area and the playground, currently separated by a simple rubble retaining wall. Access is limited to a narrow staircase, which restricts movement and poses safety concerns.

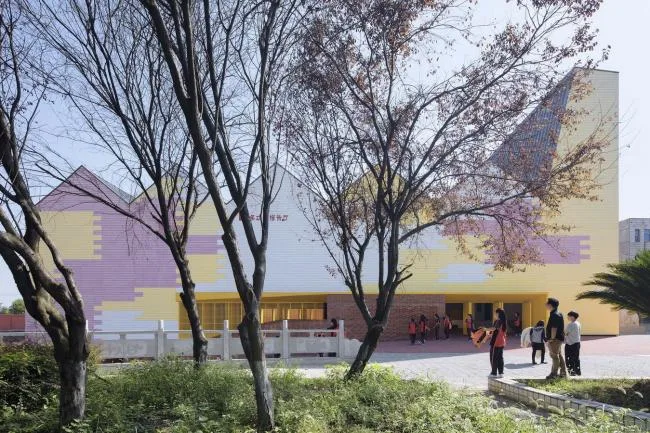

View of the Wind and Rain Playground from the Main Building
Photo Credit: Summer Solstice
South Courtyard
Photo Credit: Summer Solstice

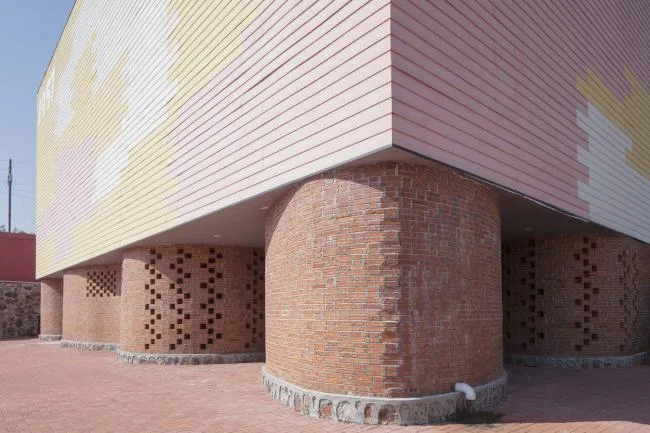

Southeast Corner
Photo Credit: Summer Solstice

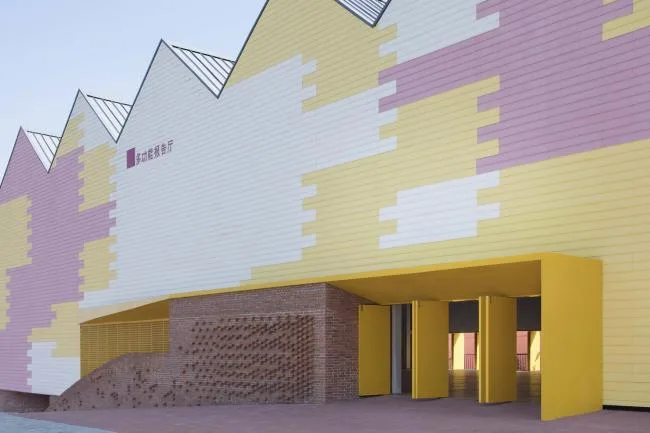

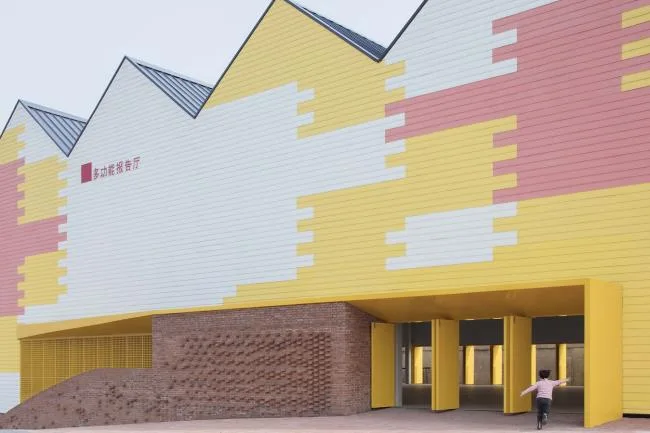

Main Entrance
Photo Credit: Summer Solstice
Main Entrance
Photo Credit: Summer Solstice
Main Entrance
Photo Credit: Summer Solstice
Main Entrance Square
Photo Credit: Summer Solstice
West Side Entrance
Photo Credit: Summer Solstice
The site selection was a collaborative decision between the architect and the school. Instead of simply placing the new structure at either the lower or higher ground, the design spans the elevation difference. This, combined with the surrounding landscape, creates a smooth and natural connection between the main campus and the playground.

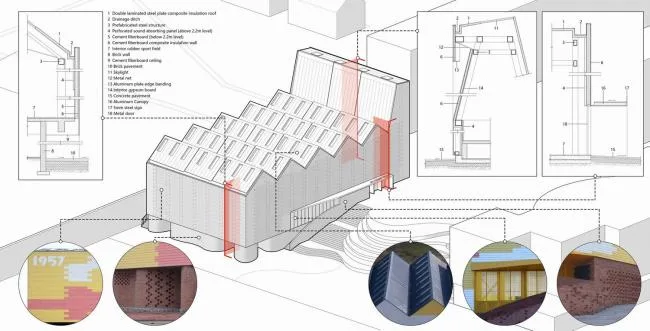

Exploded Diagram
The main space of the Wind and Rain Playground is elevated, featuring a jagged, undulating form inspired by the mountainous landscape around Yueyang. Positioned opposite the main school building, curved outdoor steps extend from the front square down to the lower activity area. These steps also function as seating for leisure.
Facilities such as the sports equipment room and restrooms are located at a lower level and are designed to integrate seamlessly with the outdoor space. Curved forms and local red bricks are used to create a welcoming and approachable atmosphere.

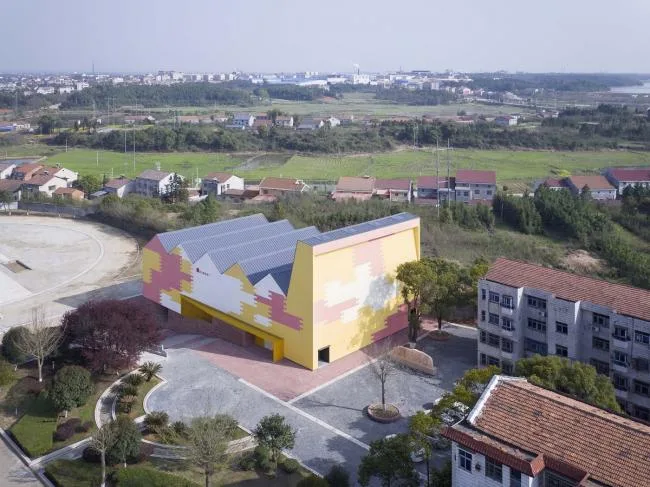

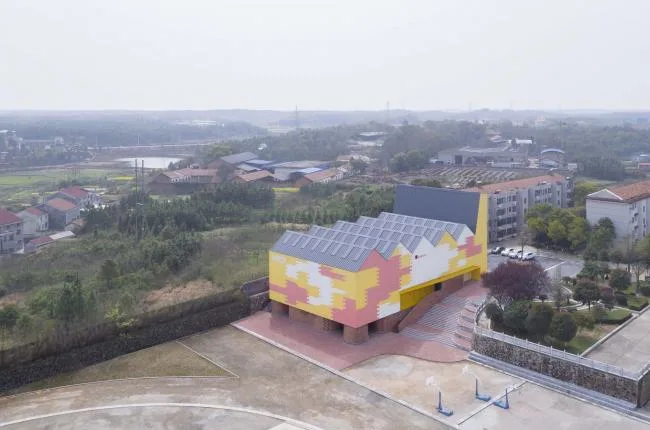

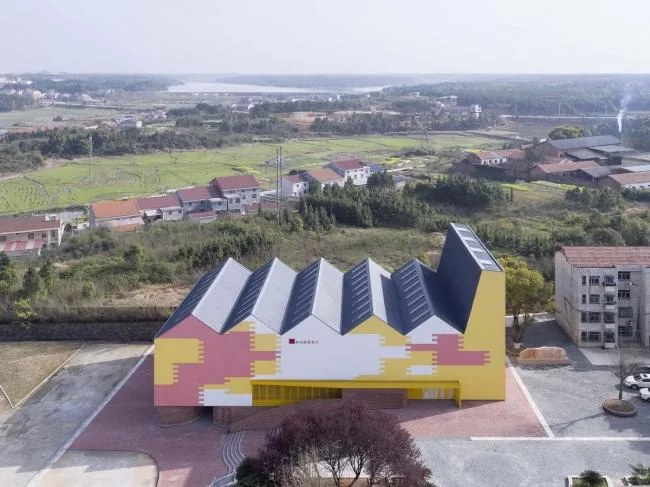

Aerial View
Photo Credit: Summer Solstice

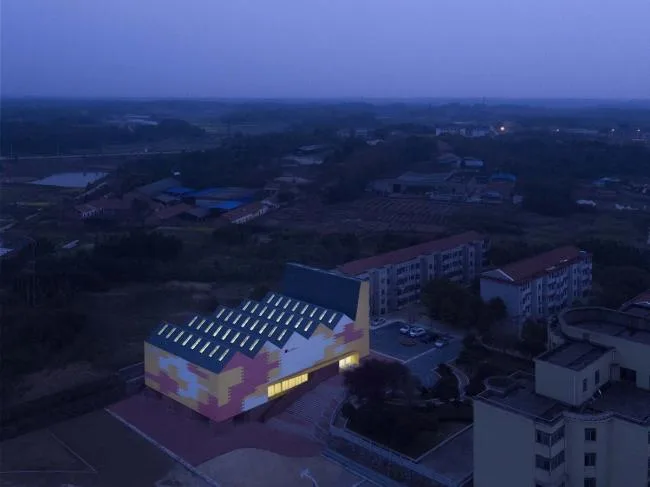

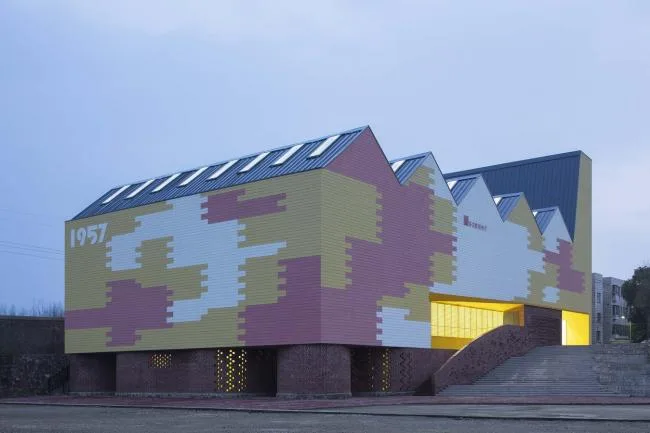

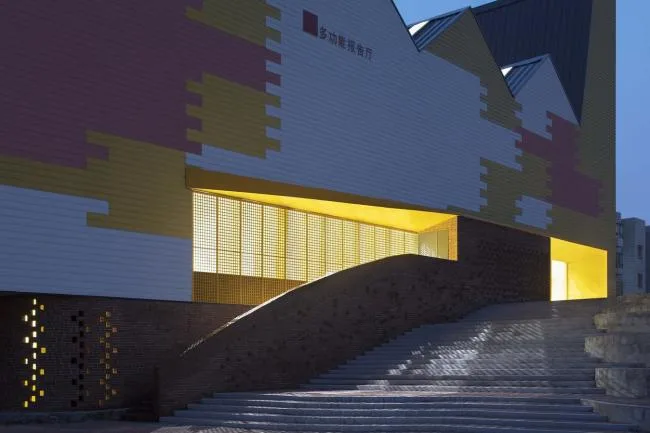

Night Photography
Photo Credit: Summer Solstice
Channel View
Photo Credit: Summer Solstice
Channel Night Scene
Photo Credit: Summer Solstice

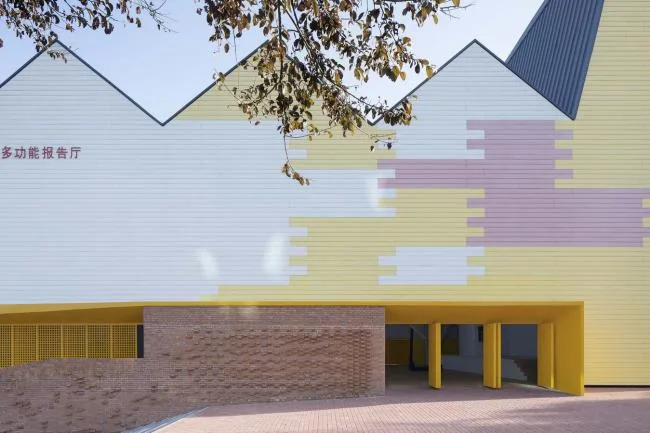

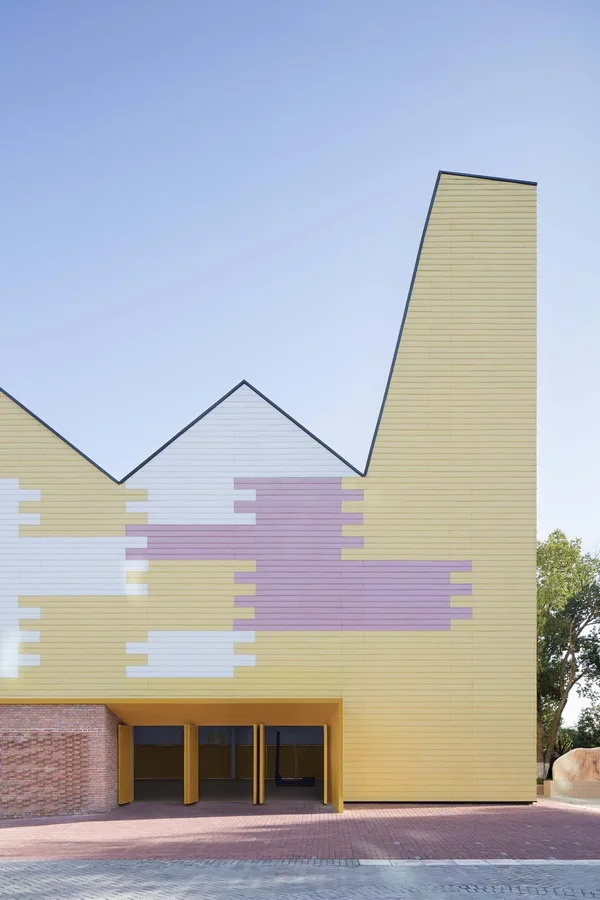

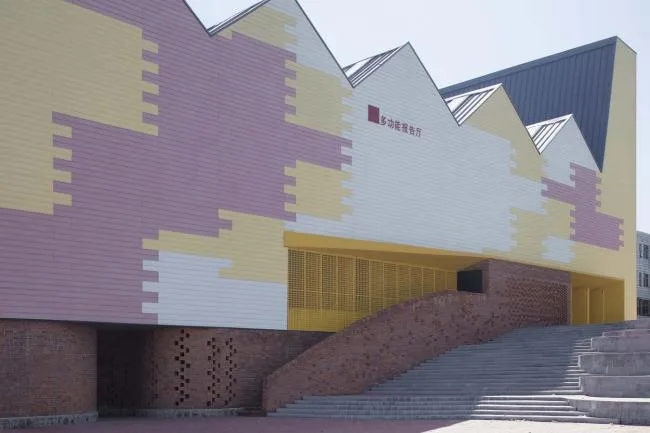

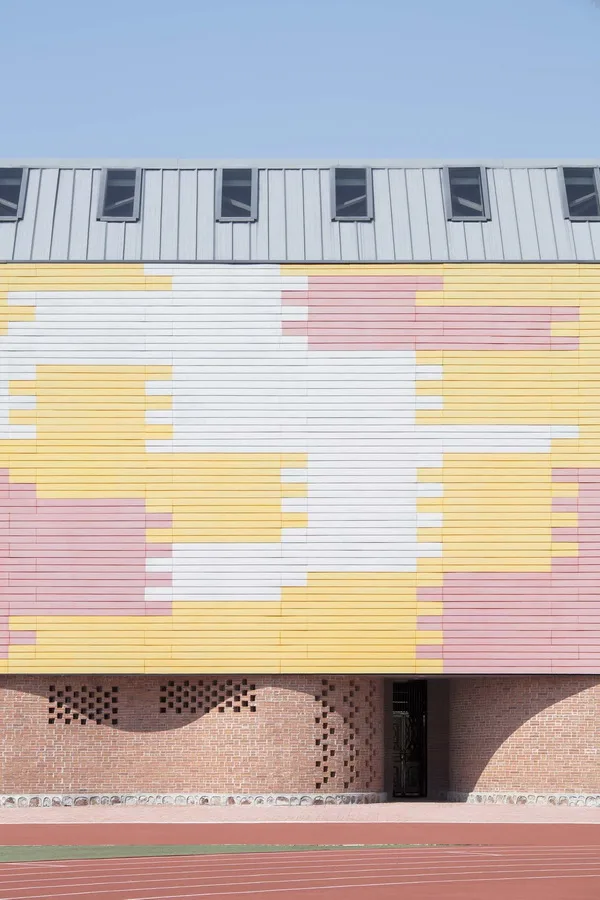

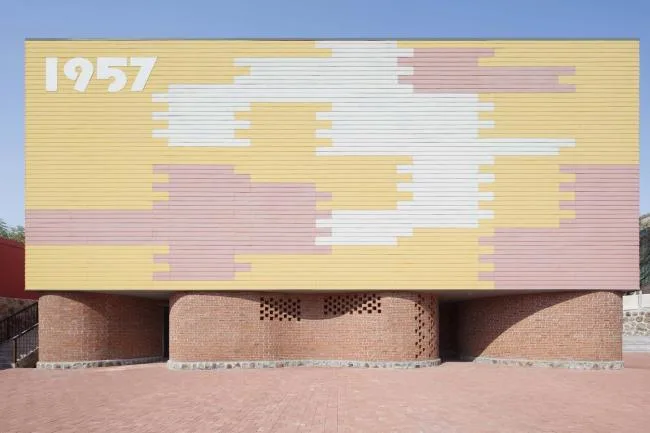

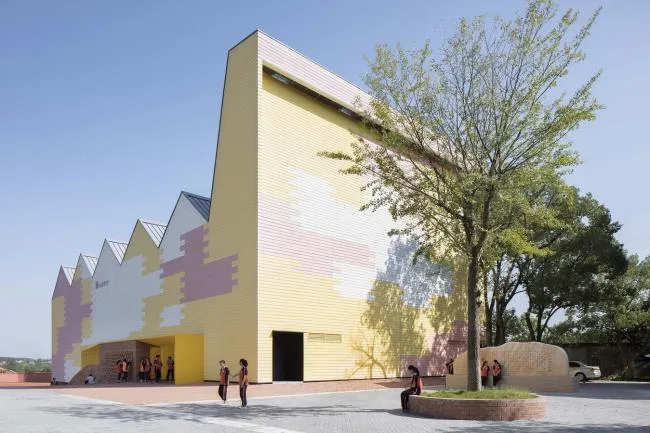

East Facade
Photo Credit: Summer Solstice
Partial East Facade
Photo Credit: Summer Solstice
Partial East Facade
Photo Credit: Summer Solstice

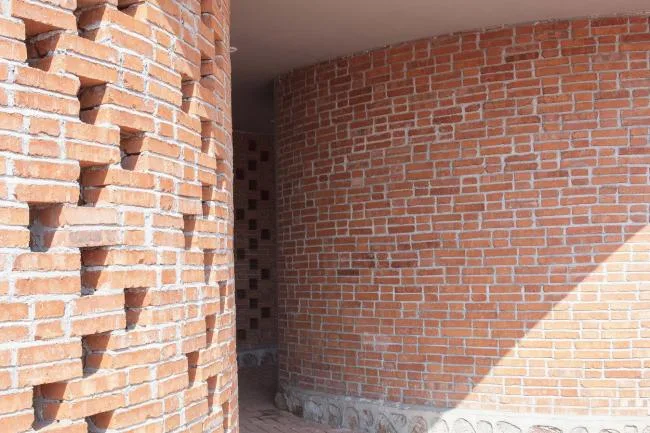

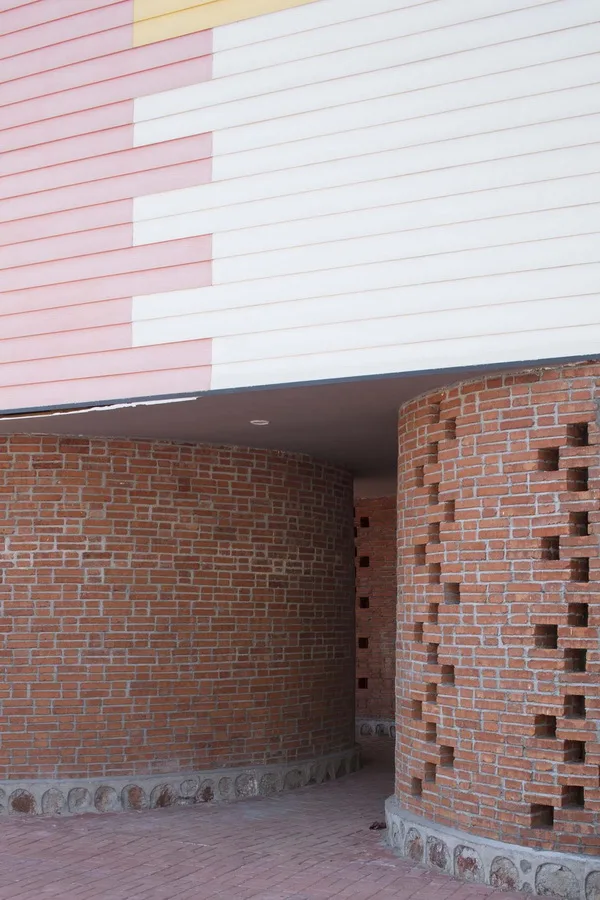

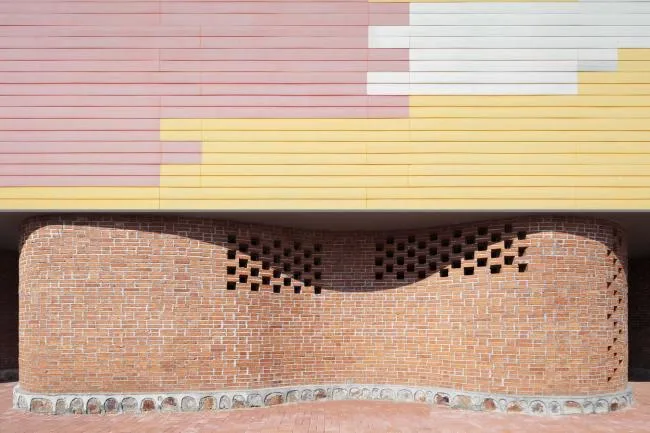

Brick Wall Detail
Photo Credit: Summer Solstice
Brick Wall Detail
Photo Credit: Summer Solstice
Brick Wall Detail
Photo Credit: Summer Solstice
Yueyang experiences hot summers and cold winters, with humid and rainy conditions year-round. To ensure a comfortable sports environment and reduce the school’s costs for mechanical equipment and maintenance, the building incorporates natural ventilation and lighting as key sustainable strategies.
The podium is elevated with continuous ventilation openings at higher points. These openings feature sloped facades that provide self-shading and do not require mechanical controls for opening or closing.

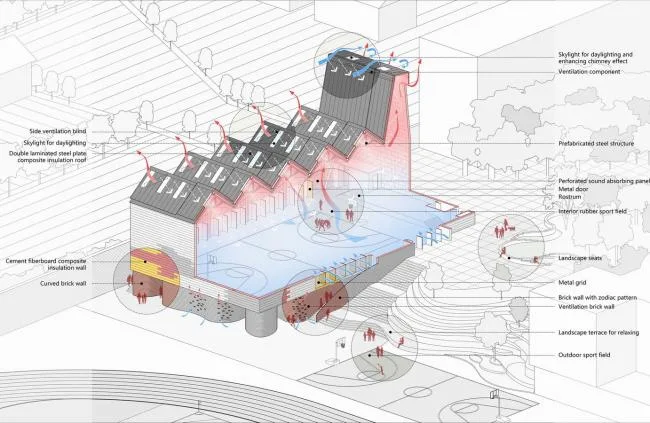

Axonometric Analysis Diagram

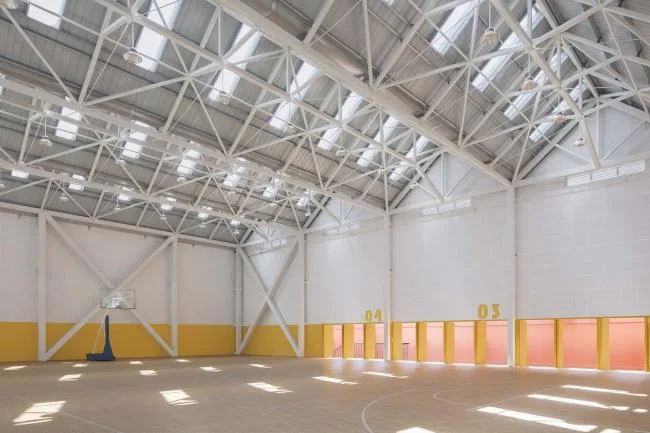

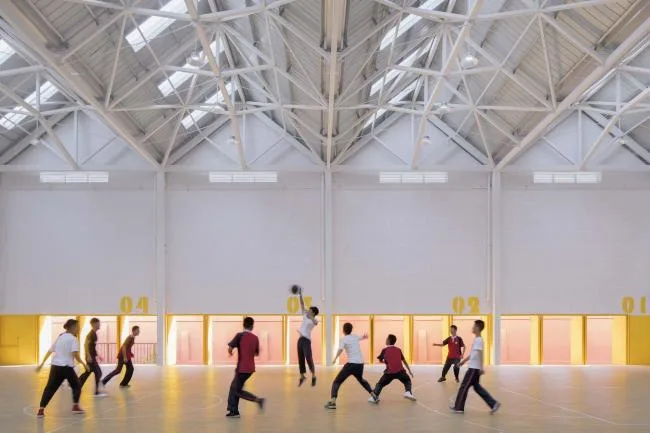

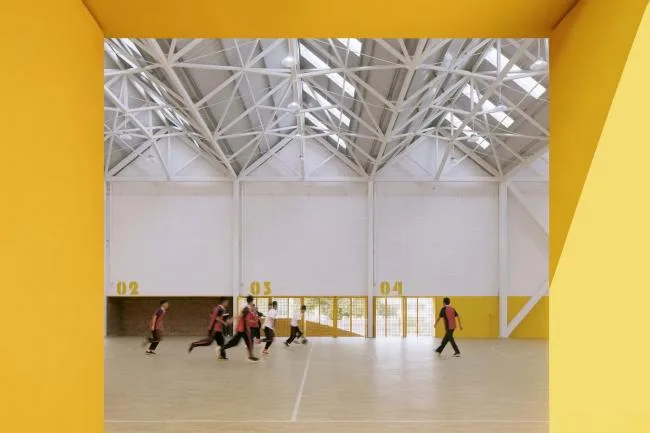

Indoor Basketball Court
Photo Credit: Summer Solstice
Indoor Basketball Court
Photo Credit: Summer Solstice
A skylight is installed at the top to enhance the spatial atmosphere within the podium. At the base of the north and south facades, a row of full-height, openable doors allows for maximum natural ventilation when opened.
By leveraging principles of wind and thermal pressure ventilation, the design optimizes indoor airflow, reduces humidity, and improves overall indoor comfort.

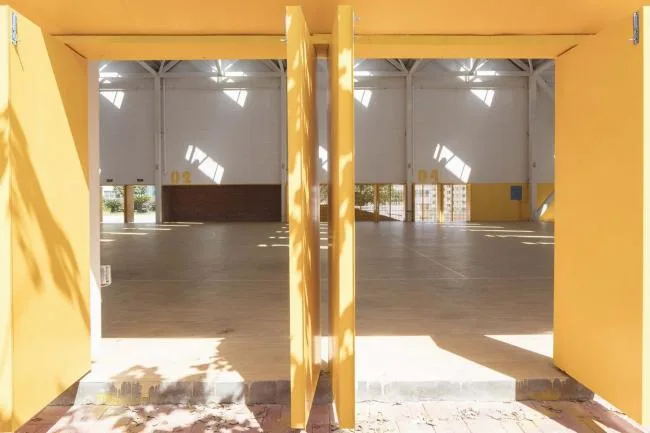

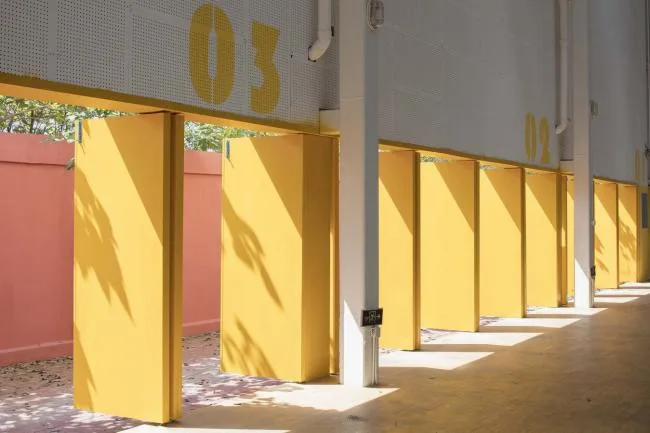

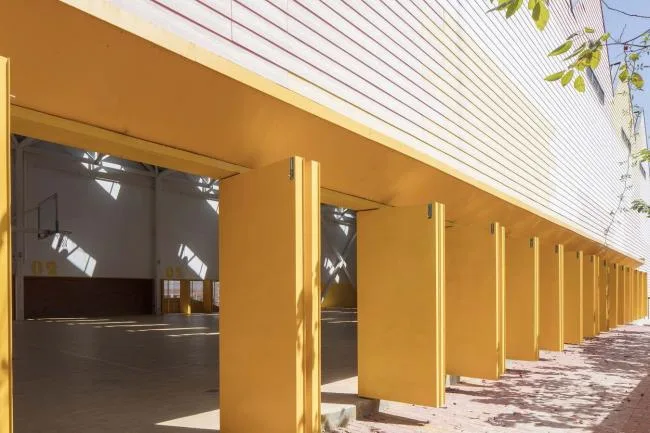

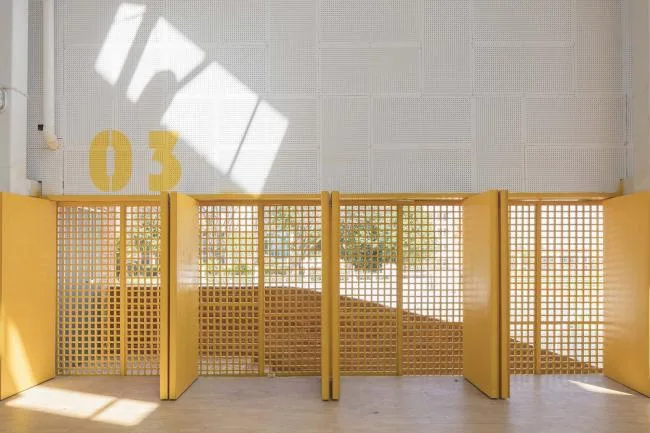

Ventilation Door Detail
Photo Credit: Summer Solstice
Seamless Indoor and Outdoor Integration
Photo Credit: Summer Solstice
Seamless Indoor and Outdoor Integration
Photo Credit: Summer Solstice
Natural Lighting and Ventilation
Photo Credit: Summer Solstice

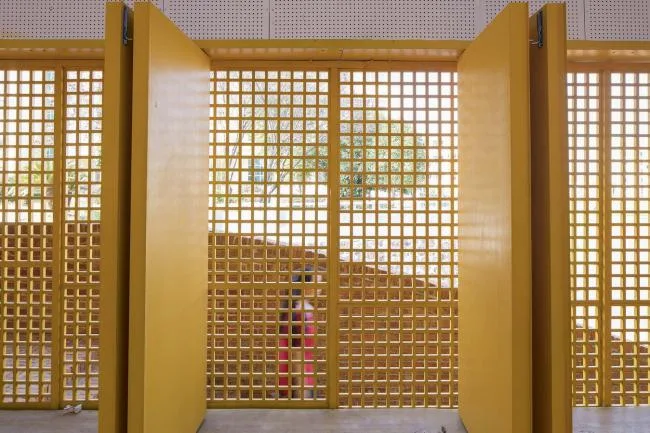

Indoor Ventilation Door with Guardrail
Photo Credit: Summer Solstice
Ventilation Chimney at the Podium Roof
Photo Credit: Summer Solstice

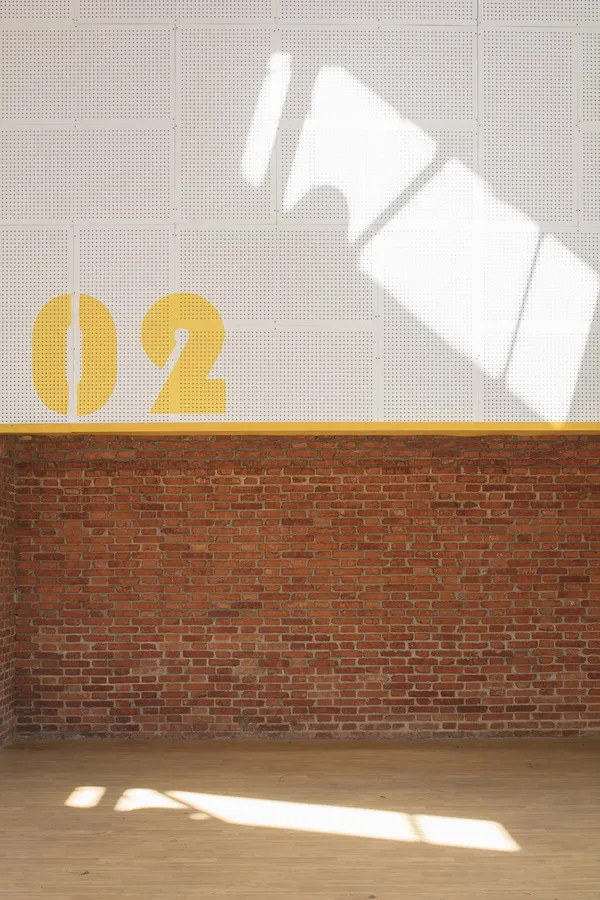

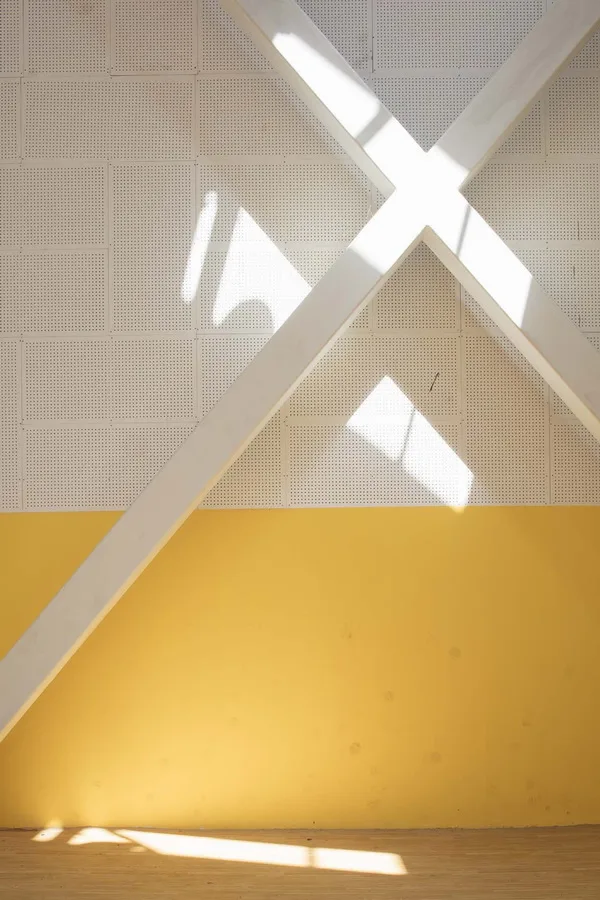

Interior Details
Photo Credit: Summer Solstice
Interior Details
Photo Credit: Summer Solstice
Interior Details
Photo Credit: Summer Solstice

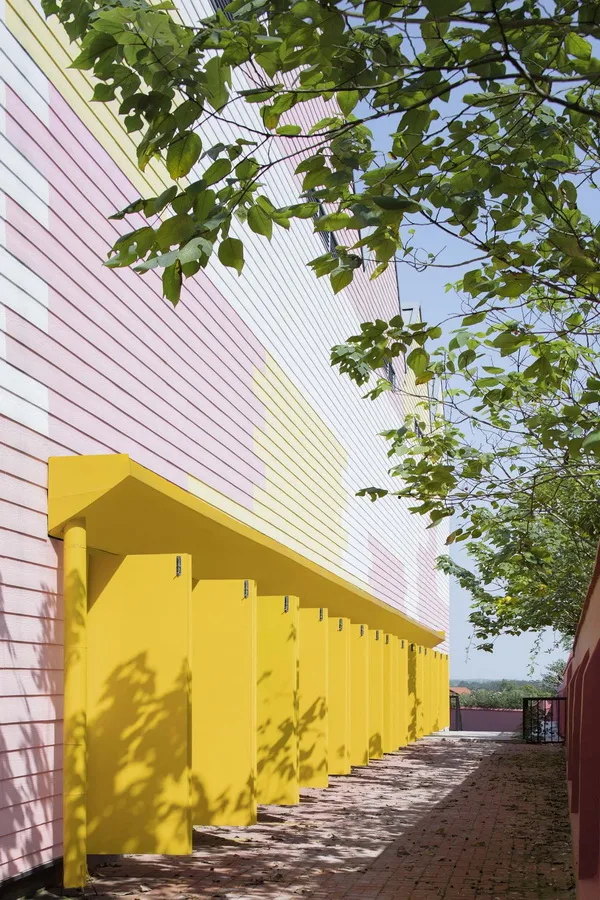

A narrow alley runs between the southern campus wall and the building, providing shade and helping to cool indoor air during summer months.

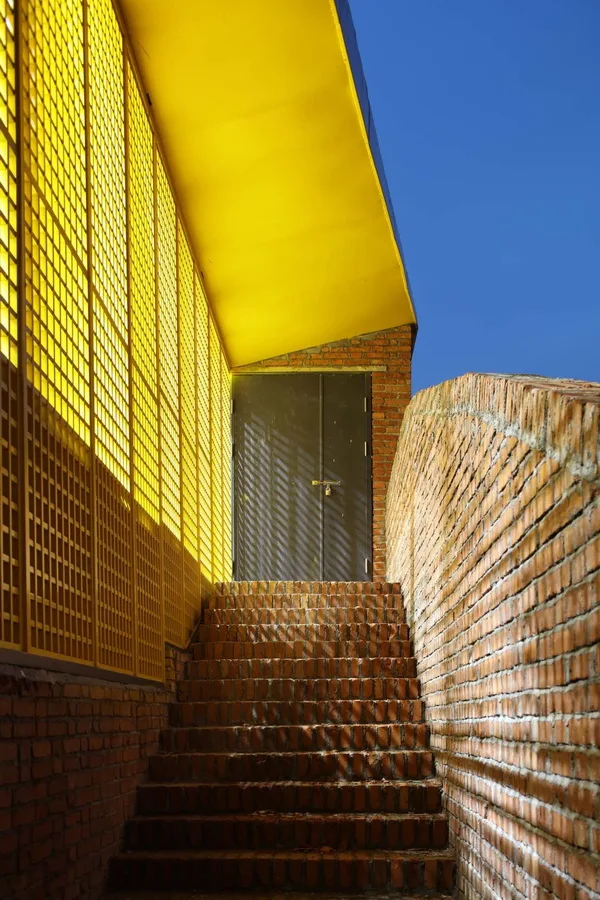

South Narrow Alley
Photo Credit: Summer Solstice

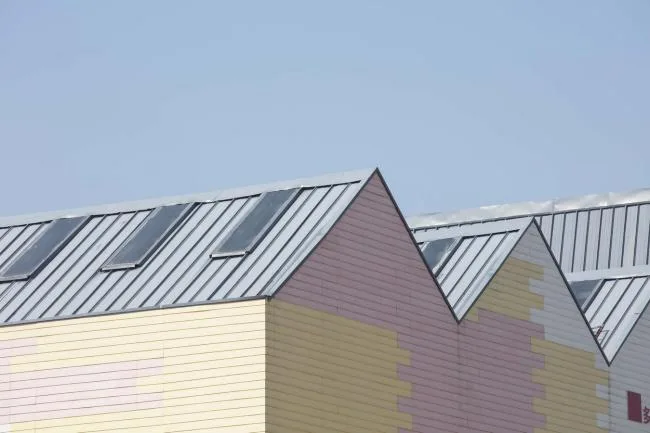

The serrated roof features ample skylights to ensure natural lighting indoors even on rainy days. Ventilation louvers at the top of each serrated facade prevent heat buildup.
Skylight Detail
Photo Credit: Summer Solstice
To minimize construction impact on the campus and accommodate the elevation differences, the building employs a mixed construction strategy combining cast-in-place methods with factory prefabricated components.
The base continues the existing height difference of the rubble retaining wall, constructed traditionally with reinforced concrete and red bricks. The upper main space uses prefabricated steel structures for retaining walls and roofing.

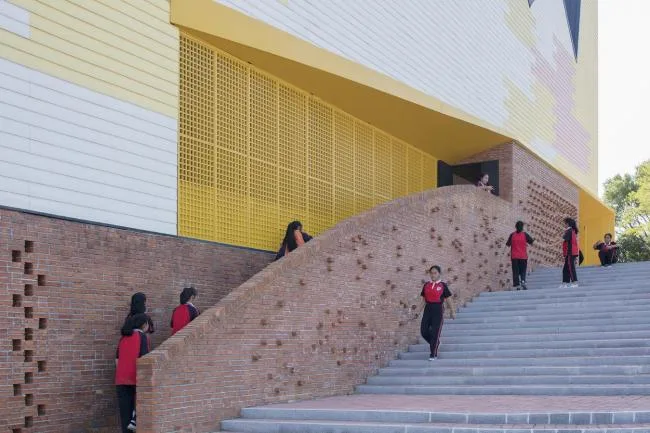

Large Staircase Connecting Playground and Main Campus
Photo Credit: Summer Solstice

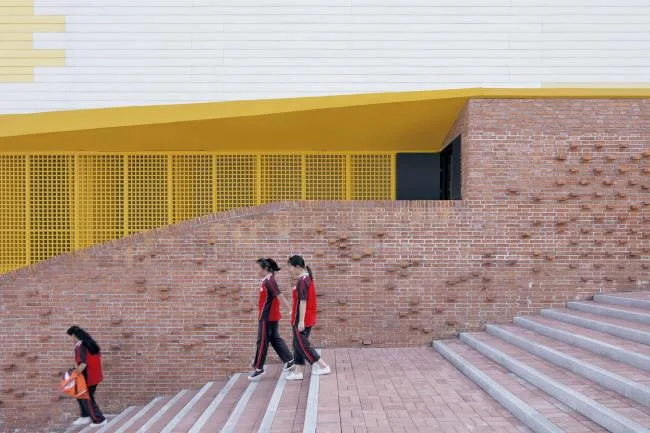

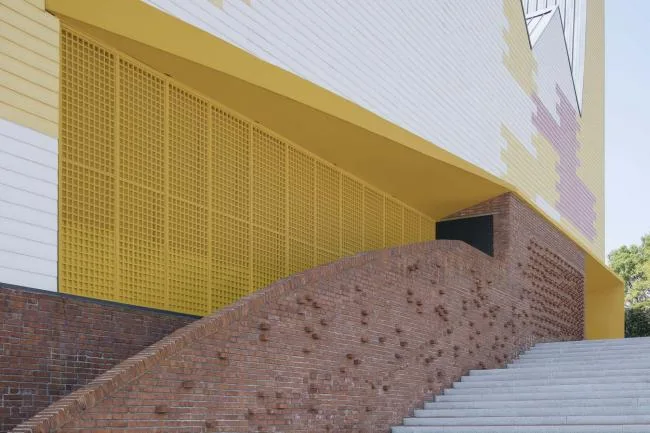

Red Brick Leisure Steps
Photo Credit: Summer Solstice
Leisure Steps
Photo Credit: Summer Solstice
The design integrates handcrafted red brick masonry with industrial elements, combining the freedom and artistry of traditional brickwork with the precision of industrialized construction.

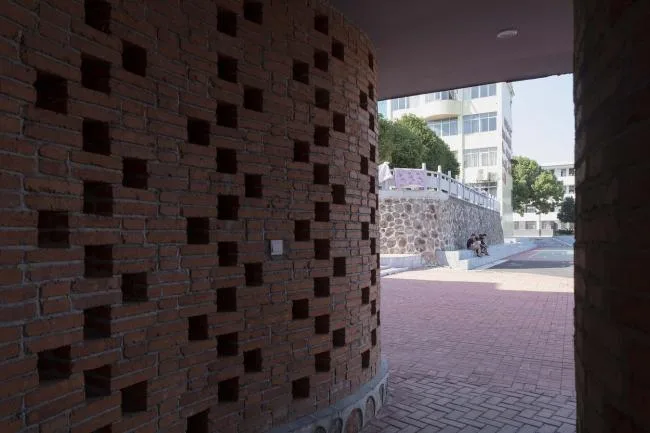

For example, traditional decorative bricklaying techniques create lighting and ventilation openings in the brick walls. Additionally, the twelve zodiac constellations are incorporated into the brick wall’s concave and convex patterns.
Toilet and Sports Equipment Room
Photo Credit: Summer Solstice

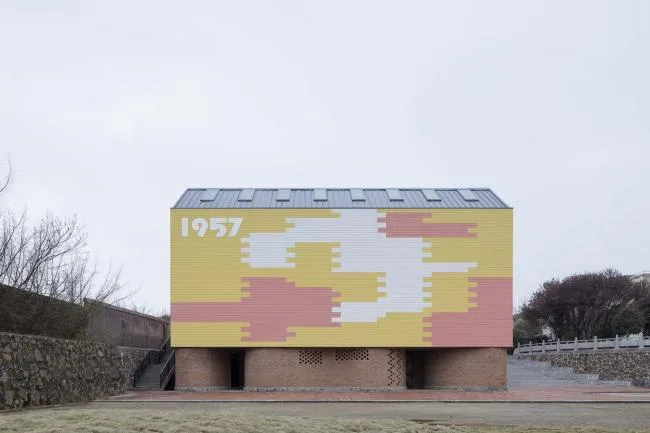

East Facade
Photo Credit: Summer Solstice

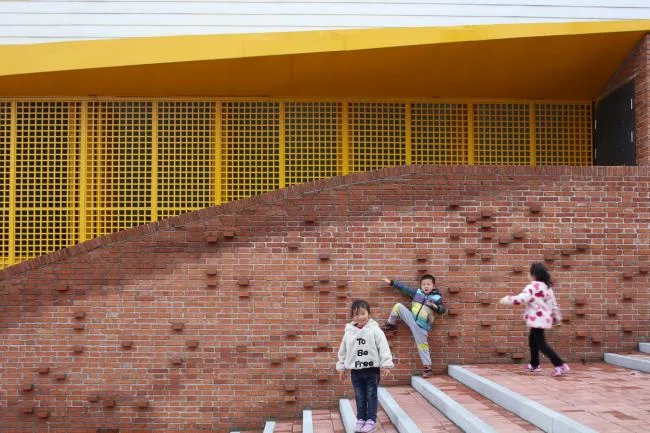

Twelve Constellation Pattern Brick Wall
Photo Credit: Summer Solstice
Twelve Constellation Pattern Brick Wall
Photo Credit: Summer Solstice

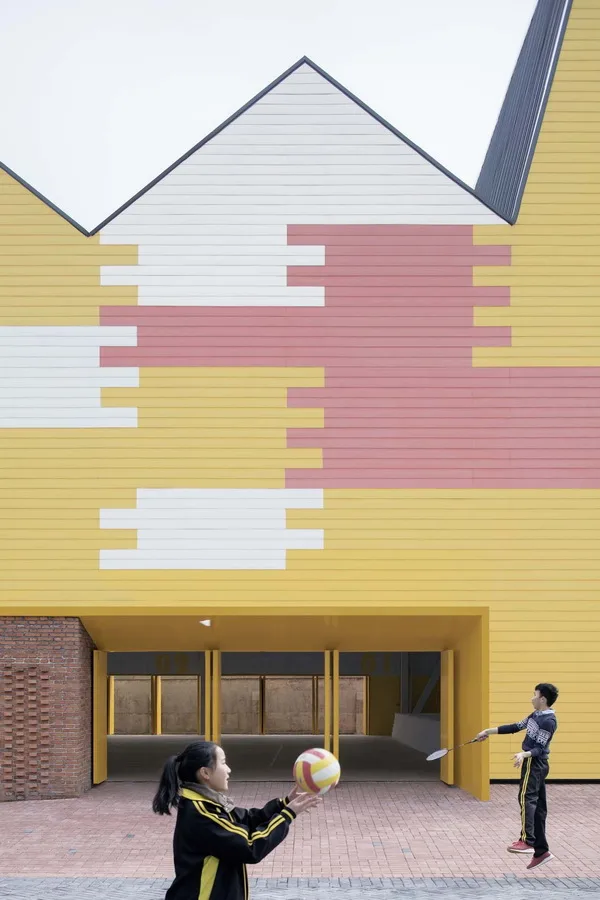

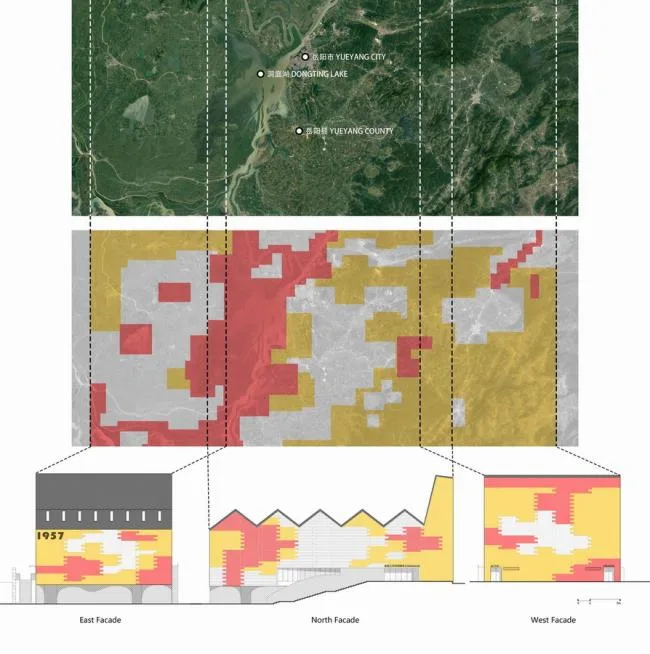

The colors and patterns of the main building draw inspiration from an abstract map of Yueyang’s mountains, waters, and plains.
As a school building, this design enriches the environment with engaging and interactive elements for children.
Night Activity Space
Photo Credit: Summer Solstice
Color and Texture Details
Project Drawings

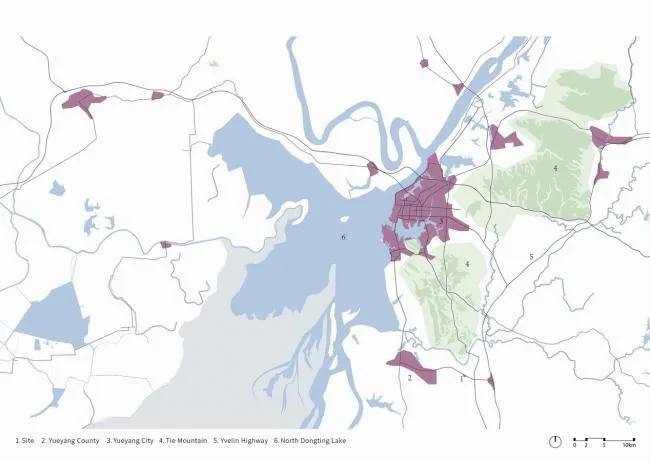

Location Map

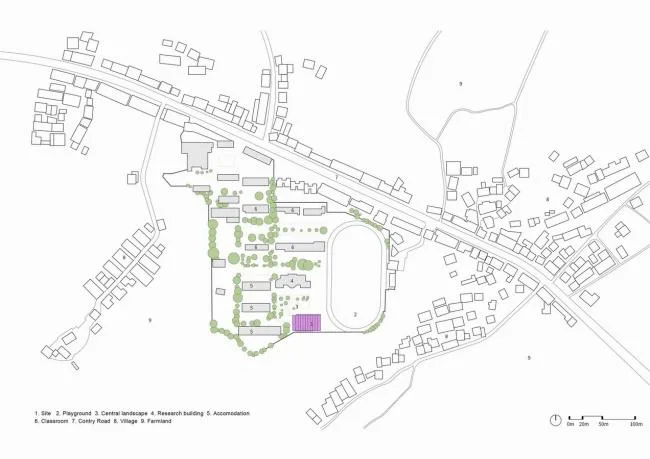

Master Plan
Axonometric Analysis Diagram
Axonometric Analysis Diagram
Exploded Diagram

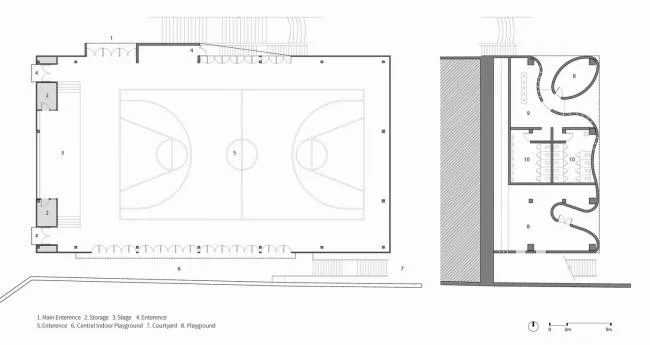

Floor Plan
Elevation Drawing

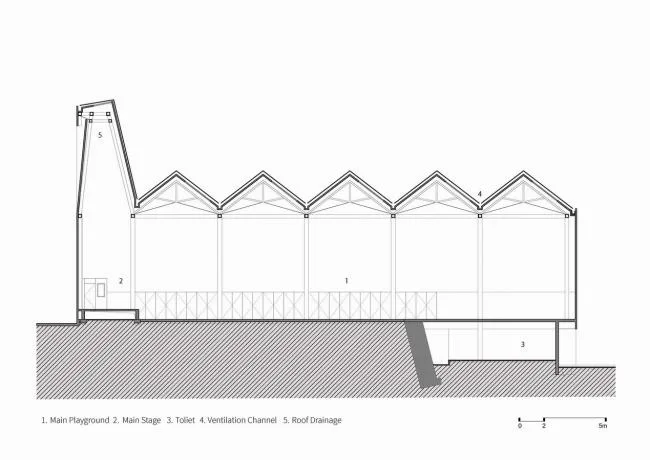

Sectional View

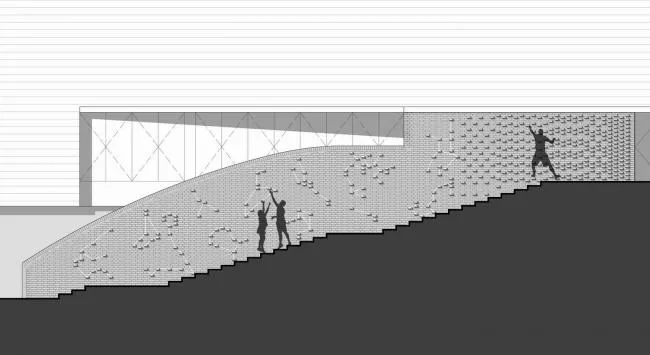

Brick Wall Constellation
Project Information
Architect: Su Pu Architecture Studio
Location: Yueyang County, Hunan Province, China
Project Architects: Song Yehao, Chen Xiaojuan, Jie Dan, Sun Jingfen, Bai Sulitu, Chu Yingnan, Han Dongchen, Yu Haowei
Project Contributors: Chen Nan, Fei Hongfeng, Tan Xin
Owner: Yueyang County Third Middle School
Building Area: 1,368 m²
Year Completed: 2017
Photographer: Summer Solstice
Project Type: Primary and Junior High School Facility
