BIM Data: Revit Family Library – Abutment 3.rfa

Category: BIM Family Library

File size: 292KB

File format: .rfa

Family Introduction

Bridge piers are structures located at both ends of a bridge. They support the bridge’s superstructure and connect it to the embankment. Their primary function is to transfer the load from the bridge’s upper structure to the foundation. Additionally, they resist the pressure from the backfill behind the abutment, stabilize the roadbed at the bridgehead, and ensure a smooth, reliable connection between the bridgehead line and the bridge’s roadway.

Family Download

Abutment 3.rfa

Extraction code: tj8b

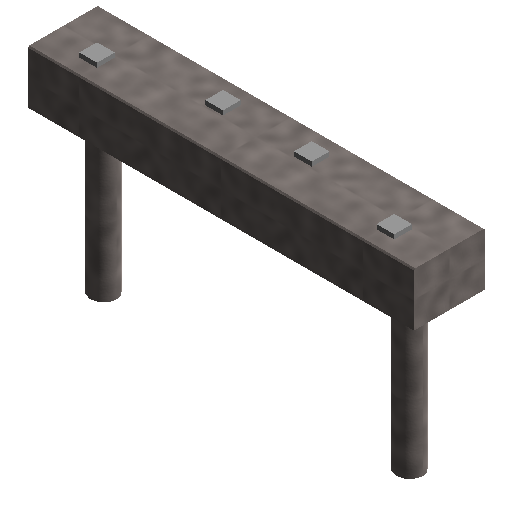

Family Screenshot

Family Parameters

Product Parameters

Dimensions:

• Width: 1600 mm
• a: 900 mm
• Height: 1200 mm
• Basic thickness: –
• Pier length: 3640 mm
• b: 900.000000000005 mm
• Length: 8700 mm
• Pier radius: 300 mm

Identification Data

• URL
• Instructions
• Annotation marks: –
• Model number: –
• Cost: –
• Component code: –
• Manufacturer: –
• Type annotation: –
• Type image: –

Material and Decoration

Structural material: –
