Category: BIM Family Library
File size: 3.45 MB
File format: .rfa
Family Introduction
The length and width of the steel bar processing shed should be determined by the number of steel bars processed and the machinery involved. Common shed sizes include 6×9m, 6×12m, and 9×12m, which can be selected based on actual needs. Alternatively, custom dimensions can be designed to fit specific requirements.
Family Download
Rebar Processing Shed Renovation.rfa
Extraction code: ddxi

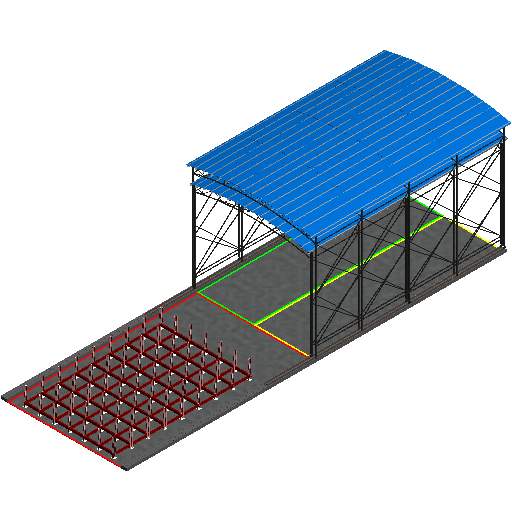

Family Screenshot
Family Parameters
Product Parameters
Material and Decoration
Green Paint – CI1
Red Paint
Black and Yellow Warning Paint
Color Steel Tile – Yellow Paint
Steel Construction Access Road Corner
Steel – CI2
Concrete – CI3
Identification Data Annotation Marks
Component Code – Type Annotation – Model – Type Image – URL Description – Manufacturer – Cost
Dimensions
Outward Overhang (8.5m): 300 mm
Steel Column Height: 700 mm
Left and Right Outskirts: 100 mm
Steel Column Inner Diameter: 97 mm
Folding Circular Tube: 25 mm
Single Layer Color Steel Tile Outer Diameter: 18,312.83 mm
Interval: 3,250 mm
Steel Column Thickness: 100 mm
Single Layer Color Steel Tile Inner Diameter: 18,312.03 mm
Lower Steel Pipe Diameter: 60 mm
Upper Steel Pipe Diameter: 50 mm
Rebar Processing Shed Renovation.rfa
