Category: BIM Family Library
File size: 412KB
File format: .rfa
Family Download
Electric kettle.rfa
Extraction code: cue9
The electric kettle operates on a simple principle: when water boils, the steam causes the bimetallic strip in the steam sensor to deform. This deformation activates a lever mechanism that cuts off the power supply. Note that the switch does not reset automatically after power is restored, so the kettle will not reheat automatically following a power outage.

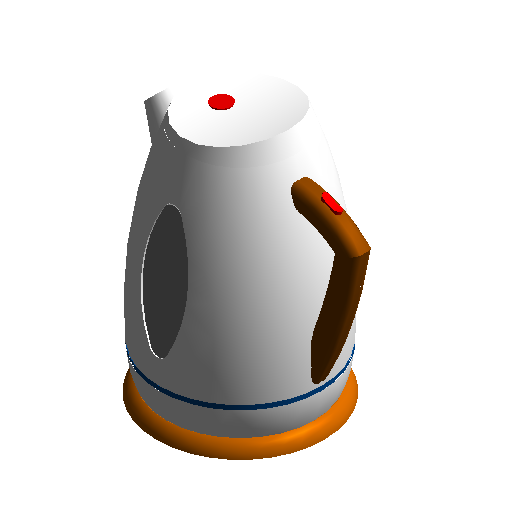

Family Screenshot
Family Parameters
Product Parameters
Material and Decoration: Supports spherical gripper frame surface glass
Identification Data: Includes cost type, annotation, model, URL, component code, manufacturer, type, and image
Layer: Button
Electric kettle.rfa
