Category: BIM Family Library
File Size: 4.73 MB
File Format: .rfa
Family Download
Tower Crane – Tower Crane.rfa
Extraction Code: axc1
Introduction: The tower crane, also called a tower crane, originated in Western Europe. It is a rotating crane with a boom mounted on top of a tall tower. Featuring a large operational range, it is primarily used for vertical and horizontal transportation of materials and for assembling building components in construction projects.

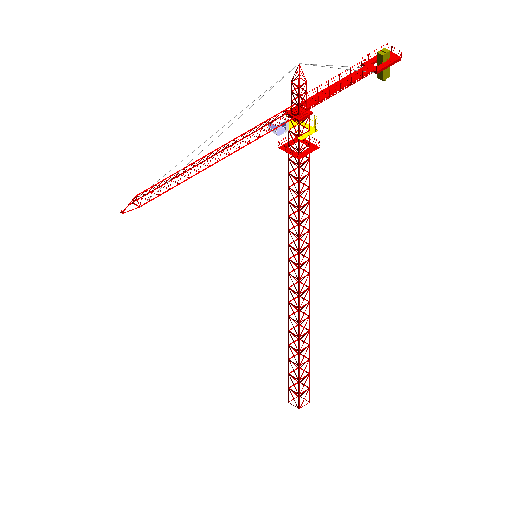

Family Screenshot
Family Parameters
Product Parameters
Identification data includes component codes, annotation types, image URLs, manufacturer types, annotations, and cost models.
Dimensions
- Weight arm unit length: 2000 mm
- Tower crane pivot radius: 1000 mm
- Tower crane column unit height: 2250 mm
- Tower crane pivot platform length: 2500 mm
- Weight arm length: 12000 mm
- Boom length: 28800 mm
- Tower crane column unit width: 2000 mm
- Tower crane pivot platform width: 2500 mm
- Tower crane column unit length: 2000 mm
Other Specifications
- Number of counterweight units: 6
- Number of tower suspension column units: 20
- Number of boom units: 16
Material and Decoration
Weighting Material, Tower Suspension Column Unit Material, Observation Platform Material, Crane Arm Material, Tower Crane Shaft Material, Rotating Column Material, Weighting Platform Material
File: Tower Crane – Tower Crane.rfa
