Category: BIM Family Library
File size: 7.09 MB
File format: .rfa
Family Download
Office area gate.rfa
Extract code:
This content is hidden! Leave a comment and refresh the page to view it.

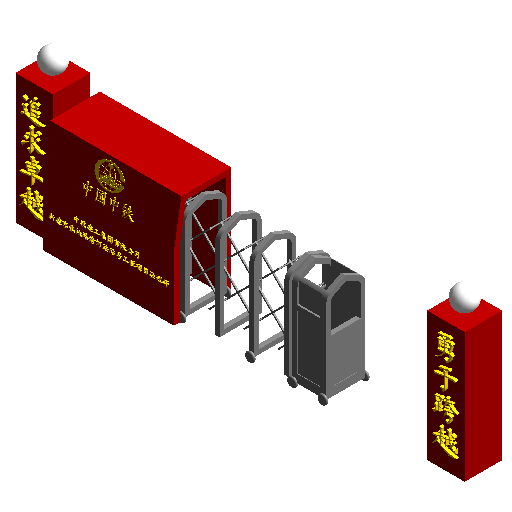

Family Screenshot
Family Parameters
Product Parameters
Dimensions:
Door net width: 6500 mm
Ceiling light radius: 200 mm
Pillar height: 2250 mm
Pillar width: 650 mm
Ceiling light spacing: 7150 mm
Pillar length: 650 mm
Identify Data
Manufacturer type, image description, annotation, URL type, annotation, model, cost, part code
Material and Decoration
Door light material: jujube red brick with gold text
Office area gate.rfa
