BIM Data: Revit Family Library for Tower Crane Distribution Box and Protection (RFA)

Category: BIM Family Library

File size: 2.77 MB

File format: .rfa

Family Download

Tower Crane Distribution Box and Protection – .rfa

Extraction code: hg7c

This tower crane distribution box includes phase relays and may also contain protection switches, fuses, thermal relays, AC contactors, control transformers, overload protectors, control buttons, and other components. The configuration can vary slightly depending on the specific distribution box.

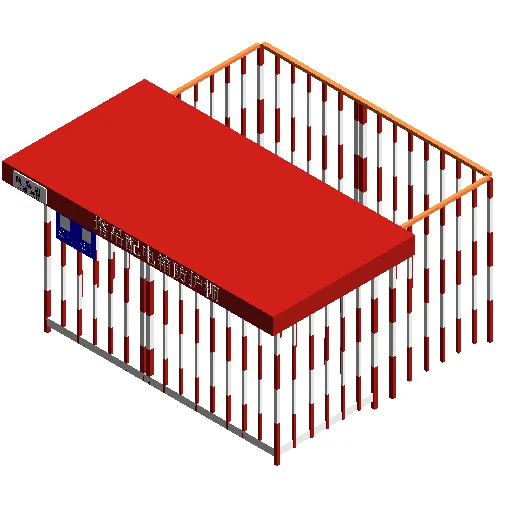

Family Screenshot

Family Parameters

Identification Data

• Type Annotation
• Manufacturer
• URL Annotation
• Model Type
• Image
• Cost
• Description
• Component Code

Dimensions

• Height: 2200 mm
• Roof Overhang: 300 mm (approx.)
• Width: 1500 mm (approx.)
• Length: 3000 mm

Tower Crane Distribution Box and Protection – .rfa
