BIM Data: Revit Family Library for Structural Columns.rfa

Category: BIM Family Library

File size: 736KB

File format: .rfa

Family Download

Structural column.rfa

Extraction code: ttau

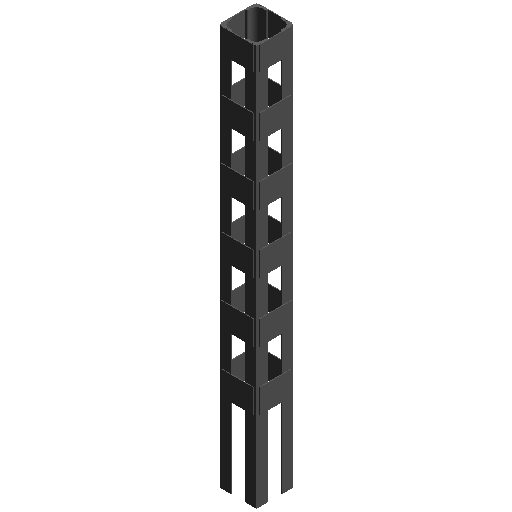

Family Screenshot

Family Parameters

Product Parameters

Other specifications:

• Panel spacing: 800mm
• Angle steel limb length: 140mm
• Angle steel chamfer: r75mm
• Panel height: 300mm
• Panel width: 400mm
• Panel thickness: 10mm
• Angle steel thickness: 20mm
• Panel quantity: 6

Identify Data

Explanation: Manufacturer, URL, Type, Annotation, Section Name, Keyword, Component Code, Type Image, Model Annotation, Cost

Dimensioning

Column width: 460mm
Bottom offset of panel: 1000mm
Zg: 5000mm

Material and Decoration

Structural material

Structural column.rfa
