BIM Data: Revit Family Library – Four-Panel Split Door Elevator Model (.rfa)

Category: BIM Family Library

File size: 348KB

File format: .rfa

Family Download

Four Compromise Split Door Elevator (.rfa)

Extraction code: fwn2

Introduction: The mid split door features a door leaf divided in the middle, allowing for efficient opening and closing. It is widely used in both passenger and freight elevators. The mid split double folding door consists of four door panels that open and close on both sides, with the two panels on each side folding together via a door arm.

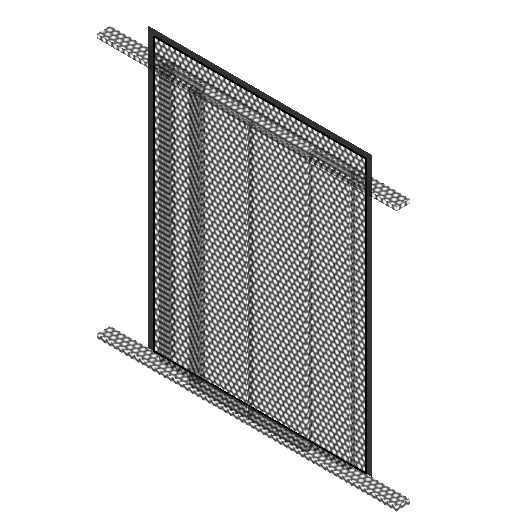

Family Screenshot

Family Parameters

Other Specifications:

• Track length: 2480 mm
• Door frame thickness: 50 mm
• Door offset: 0 mm
• Car width: 1661 mm
• Shaft left side width: 1275 mm
• Elevator door material with edge wrapping: 0
• Shaft depth: 3250 mm
• Edge wrapping thickness (when door offset): 50 mm
• Car depth: 2700 mm
• Shaft right side width: 1425 mm

Identification Data:

Includes model, component code, manufacturer’s description, type, image, URL, annotation, type, and annotation cost.

Dimensions:

• Door opening net height: 2100 mm
• Door opening net width: 1500 mm
• Overall height: 2240 mm
• Overall width: 1740 mm

Construction:

Wall closure: 0
