BIM Data: Revit Family Library for Construction Foundations and Pile Heads (.rfa)

Category: BIM Family Library

File size: 336KB

File format: .rfa

Family Download

Construction Foundation Pile Head.rfa

Extraction code: ddnp

Introduction: The length of the pile head reinforcement anchored into the foundation beam must comply with the national standard atlas 11G101. If the straight anchor length is insufficient, the anchor can be bent to meet requirements.

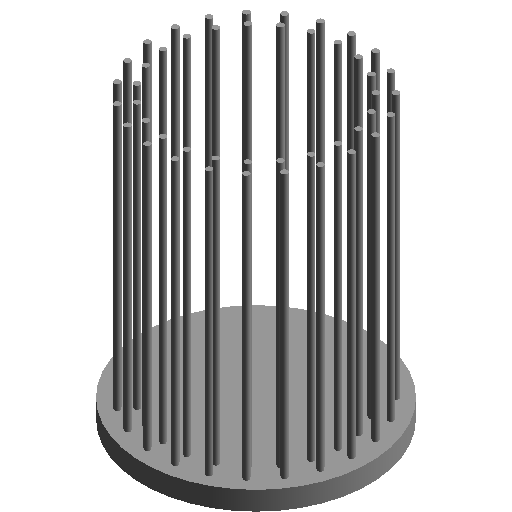

Family Screenshot

Family Parameters

Product Parameters

Other:

Number of steel bars (inner side): 21

Number of arrays: 21

Dimensioning:

Inner reinforcement radius: 350mm

Reinforcement bar diameter: 16mm

Reinforcement inner diameter: 425mm

Length radius: 500mm

Foundation thickness and width: [data not specified]

Identify Data:

Type, Image, Component Code, Type Annotation, Model URL, Annotation, Manufacturer, Description, Cost

Material and Decoration:

Structural material

Construction Foundation Pile Head.rfa
