BIM Data: Revit Family Library - Electrical Box Protective Shed.rfa

Category: BIM Family Library

File size: 6.82MB

File format: .rfa

Family Download

4 Electrical Box Protective Shed.rfa

Extraction code: 8yod

The protective shed for the electrical distribution box is constructed from square or round steel and is securely mounted on a concrete pedestal. The top features a double-layer hard protective cover, with the upper layer designed to be rainproof. It also includes a drainage slope with a minimum gradient of 5% to ensure proper water runoff.

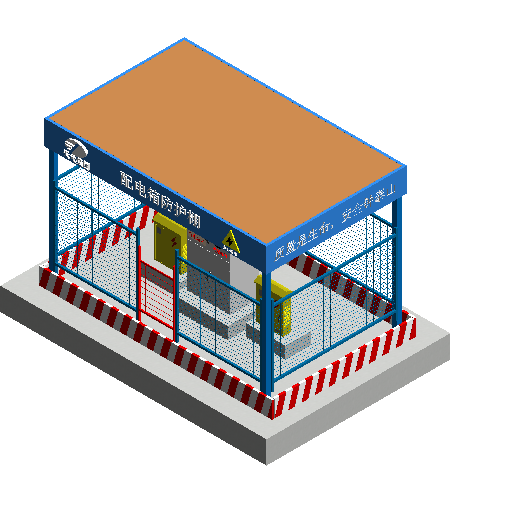

Family Screenshot

Family Parameters

Product Parameters

Material and Finish

Columns: White carpentry – steel plate
Roof frame: Infrared leather
Roof carpentry: Concrete

Identification Data

Type | Annotation | Type Image | Model Component | Code | Description | Cost | Manufacturer | URL

Dimensions

Bottom plate overhang: 500mm
Column width: 100mm
Column bottom plate thickness: 50mm
Cover plate thickness: 500mm
Outer skin width: 49.9999999995mm
Column height: 2500mm
Additional dimension: 250250mm

Constraints

Width: 2800mm
Length: 4500mm
