BIM Data: Revit Family Library for Double Fan Side-Opening Windows (.rfa)

Category: BIM Family Library

File size: 1.03MB

File format: .rfa

Family Download

Double Leaf Casement Window.rfa

Extraction code: 5z0z

Introduction

Side-hung windows are classified into sliding and hinged types. They offer several advantages, including a large opening area, excellent ventilation, effective sealing, superior sound insulation, thermal insulation, and resistance to water seepage.

Cleaning is easy with inward-opening windows, while outward-opening windows save space when opened. However, these windows typically have a narrow width, which limits the field of view.

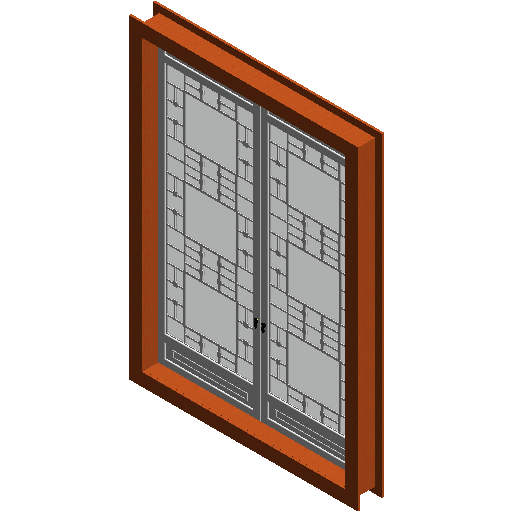

Family Screenshot

Family Parameters

Product Parameters

IFC Parameters

Operation & Dimensioning

• Door side pillar thickness (cutting edge): 32mm
• Rough width: 1500mm
• Rough height: N/A
• Door side pillar face width: 65mm
• Handle height: 636.8mm
• Door leaf retraction opening side: 20mm
• Structural tolerance: 0mm
• Window leaf thickness: 30mm
• Height: 2100mm
• Door side pillar thickness: 44mm
• Seam width: 3mm
• Single leaf width: 714mm
• Door side pillar face thickness: 15mm
• Default window sill height: 200mm
• Single leaf height: 2030mm

Identify Data

• Component Code
• Type Annotation
• Description Type
• Image Model Annotation
• Mark Manufacturer
• Cost
• URL

Analyze Attributes

Analysis includes visible light transmittance, heat transfer coefficient (U-value), thermal resistance (R-value), and solar heat gain coefficient.

Construction

Wall closure: 0; construction type unspecified.

Material and Decoration

Door side pillar material: polished copper profile.

Other Features

Includes decorative grids and door frames.
