BIM Data: Revit Family Library for Cabinet Models (.rfa)

Category: BIM Family Library

File size: 2.43MB

File format: .rfa

Family Download

Cabinet.rfa

Extraction code: 4GGH

Introduction: This kitchen platform is designed for storing utensils and facilitating cooking operations. Featuring a high-gloss color scheme, it is composed of five main components: cabinet, door panel, hardware, countertop, and electrical appliances.

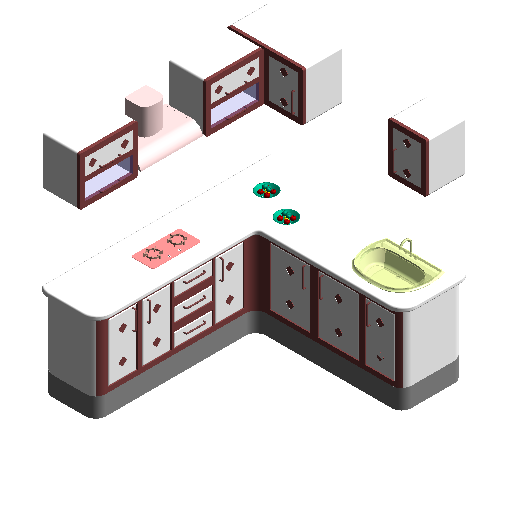

Family Screenshot

Family Parameters

Construction

Construction type

Identify Data

Description Type
Annotation Type
Image Annotation
Cost Component
Code
URL
Name
Model
Manufacturer

Material and Decoration

Faucet Material
Pear Material
Fruit Tray Material
Stove Material
Completed Range Hood Material
Red Apple Material
Stove Bottom Material
Bottom Material
Handle Material
Front Cabinet Wall Material
Fruit Handle Material
Glass Material
Rear Cabinet Wall Material
Hand Sink Material
Desktop Material
Green Apple Material
Switch Material

Dimensioning

Depth: 600 mm
Width: 900 mm
Height: 900 mm

Cabinet.rfa
