BIM Data: Revit Family Library for Air Conditioning Cabinets (.rfa)

Category: BIM Family Library

File size: 380KB

File format: .rfa

Family Download

Air conditioning box.rfa

Extraction code: cj11

Introduction: This air conditioning unit is typically a ceiling-mounted model, featuring an airflow capacity ranging from 2,000 to 12,000. It includes a limited number of functional segments.

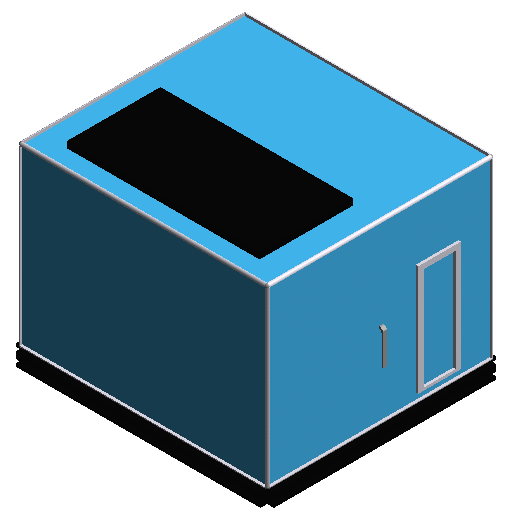

Family Screenshot

Family Parameters

Dimensions:

Machine height: 1420 mm
Air vent length: 1445 mm
Machine length: 1672 mm
Front air vent width: 280 mm
Air vent width: 700 mm
Front air vent length: 1000 mm
Machine width: 1840 mm

Identification Data:

Component Code, URL, Description, Type, Annotation, Cost, Manufacturer, Model, Annotation Type, Image

Materials and Finishes:

Body material, air vent material, protective strip material

Air conditioning box.rfa
