BIM Data: Revit Family Library - Multiplayer Table Table.rfa

Category: BIM Family Library

File size: 492KB

File format: .rfa

Family Download

Multi-Person Dining Table.rfa

Extraction code: 01rq

Introduction: The modern multi-person dining table carries a deeper meaning than traditional dining tables. It reflects a popular form of social interaction today.

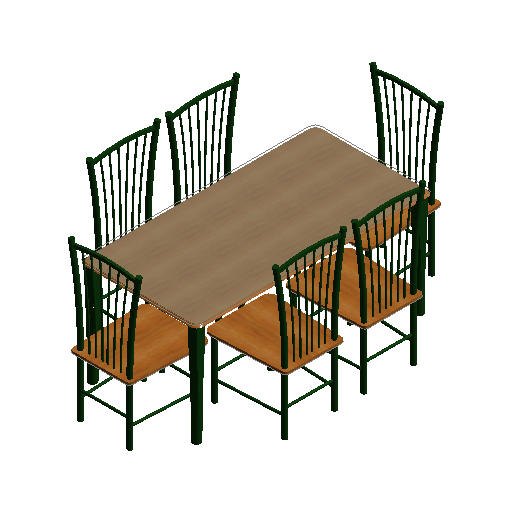

Family Screenshot

Family Parameters

Material and Decoration

Table Top Finish

Leg/Panel Color

Identify Data

Type | Annotation | Model | Manufacturer | URL | Description | Component Code | Cost | Type | Image

Other

• Leg Top Height: 0.3333
• Seat Distance: 0.5
• Center Chair Offset: 1
• Panel Offset Length: 0.1667
• Chairs Included: 1
• Leg Offset: 0.1042
• Panel Offset Ends: 0.2917
• Leg Top Width: 0.2083
• Panel Thickness: 0.0417

Dimensions

Length: 6

Width: 3

Height: 2.6667

Multi-Person Dining Table.rfa
