BIM Data | Revit Family Library - Civil Defense Suspended Explosion-Proof Wave Shutter Door.rfa

Category: BIM Family Library

File size: 1.02MB

File format: .rfa

Family Download

Civil Defense Door_Suspended Explosion Proof Wave Shutter.rfa

Extraction code: e87l

This family features two types based on material: suspended type (also called suspended plate type) and rubber tube type. Its main structure is made of steel and is designed to automatically close when exposed to nuclear shock waves, protecting the ventilation equipment inside the building from damage.

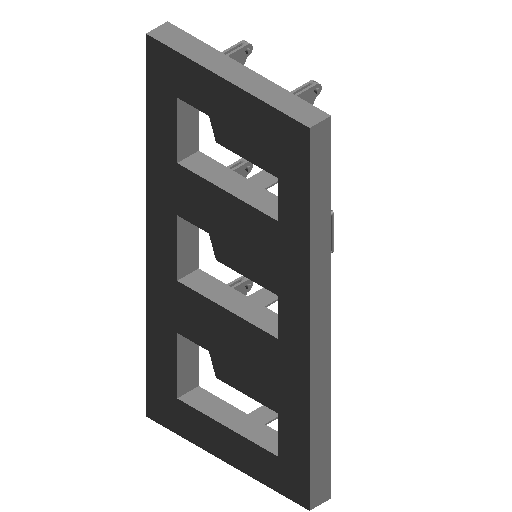

Family Screenshot

Family Parameters

Identification Data:
Type annotation, cost, fire rating, URL annotation, component code, model, manufacturer, type, image

Dimensions:
Door height: 1540mm, opening height: 263.33mm, flat door symbol width: 690mm, rough width: 760mm, thickness: 100mm, valve height: 313.33mm, left and right margins: 70mm, height: 1400mm, valve width: 520mm, width: 620mm, opening width: 470mm, upper and lower margins: 70mm, rough height

Material and Finish:
Door panel material

Performance Attributes:
Analysis and construction data including Sunlight Heat Gain Coefficient, Heat Transfer Coefficient (U-value), Thermal Resistance (R), and Visible Light Transmittance

IFC Parameters:
Operation

Construction:
Construction type function: 0, Wall closure: 0

Other:
Valve open angle: 60°, valve open status: 1

Civil Defense Door_Suspended Explosion Proof Wave Shutter.rfa
