BIM Data: Revit Family Library Featuring Wire Mesh Railing.rfa

Category: BIM Family Library

File size: 508KB

File format: .rfa

Family Download

Wire mesh railing.rfa

Extraction code: i5sv

Introduction: Steel wire mesh refers to mesh materials woven or welded from various types of steel wire, including low-carbon, medium-carbon, high-carbon, and stainless steel wires.

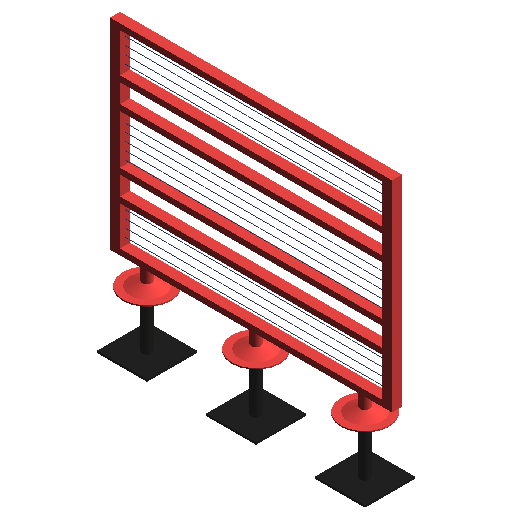

Family Screenshot

Family Parameters

Product Parameters

Dimensions:

• Stainless steel pipe depth: 275mm
• Steel wire mesh bottom height (b): 475mm
• Stainless steel sleeve depth: 275mm
• Handrail thickness (h): 29.99997mm
• Actual height (b): 200mm
• Actual height (a): 120mm
• Handrail width: 1410mm
• Handrail height: 1004.99995mm
• Wire mesh top height (a): 1070mm
• Edge distance L: 35.00004mm
• Handrail thickness (b): 49.99999mm
• Edge distance: 40mm
• Edge distance R: 35.00004mm
• Inner frame height (a): 195mm
• Inner frame width: 1310mm
• Steel wire mesh bottom height (a): 875mm
• Wire mesh top height (b): 720mm
• Inner frame height (b): 245mm
• Edge distance Ba: 37.5mm
• Edge distance Bb: 25.25mm
• Actual width: 1240mm
• Margin Ta: 37.5mm

Other Parameters:

• Wire mesh Vb: 6
• Wire mesh U: 32
• Stainless steel embedded part: 1
• Wire mesh Va: 4
• Visible support: 1
• Visible center support: 0

Material and Decoration: Support material, crossbar material, stainless steel embedded frame material, steel wire mesh material

Identification Data:

• Type
• Image
• Model
• Annotation
• Cost
• Component Code
• Description
• Manufacturer
• URL
• Type Annotation

Wire mesh railing.rfa
