BIM Data | Revit Family Library – Automatic Rotating Cloth Machine with 3 Variable Cantilever Types (.rfa)

Category: BIM Family Library

File size: 3.68MB

File format: .rfa

Family Download

Automatic rotating fabric machine featuring three types of variable cantilevers. File format: .rfa

Extraction code: 9gza

Introduction: This concrete laying machine is composed of a steel structure support, longitudinal (large) and transverse (small) running mechanisms, a concrete storage hopper (including screw conveyor, gate device, and flipping device), safety devices, hydraulic system, and electrical control system.

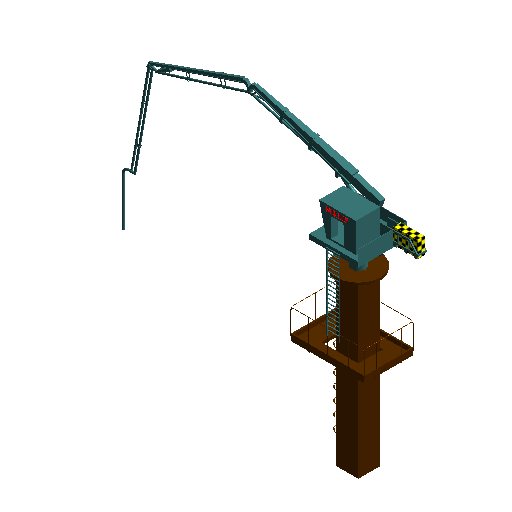

Family Screenshot

Family Parameters

Dimensions:

• Platform opening width: 1000mm
• Railing height: 1200mm
• Column body height: 7000mm
• Control room bottom length: 1200mm
• Control room height: 1200mm
• Handrail height: 1100mm
• Control roof length: 1500mm
• Platform thickness: 80mm
• Platform width: 2000mm
• Cantilever length: 7000mm
• Model text depth: 20mm
• Column body downward extension length (negative value): 0mm
• Escalator step distance: 160mm
• Platform opening length: 1500mm
• Support width: 2000mm
• Column cap radius: 900mm
• Column body width: 900mm
• Cantilever extension distance: 500mm
• Rotation transmission part radius: 300mm
• Platform height: 4000mm
• Platform edge thickness: 180mm
• Pump pipe downward extension distance: 1500mm
• Rotation transmission part array radius: 600mm
• Column body length: 900mm
• Pump pipe tail length: 2000mm
• Rotation angle: 90.00000001°
• Control roof height: 9400mm
• Control room width: 1000mm
• Support length: 2000mm
• Column cap thickness: 100mm
• Platform length: 3000mm

Material and Decoration:

White weight support material, platform beam material, escalator material, fixed weight material, pipeline tail material, control room material, column body material, pump pipe material, machine room enclosure material, small ladder material, weight material, platform enclosure material, railing material, cantilever material, cantilever edge material, platform material, rotation transmission part material, model text material.

Data:

Number of escalator steps (over 10): 30

Identification Data:

Model, component, code, type, image description, manufacturer, annotation, cost, URL, type, annotation.

Other:

Pump tube expansion and contraction.

Automatic rotating fabric machine with three variable cantilever types. File format: .rfa
