BIM Data: Revit Family Library Featuring Car Washer.rfa

Category: BIM Family Library

File size: 668KB

File format: .rfa

Family Download

Car wash tank.rfa

Extraction code: ng7a

Introduction: The car wash tank, also known as a washing machine, is a high-pressure, multi-directional washing device
designed specifically for the tire chassis of various construction vehicles. It meets the standards and requirements
set by municipal, road, construction, environmental, and transportation authorities for construction vehicle maintenance.

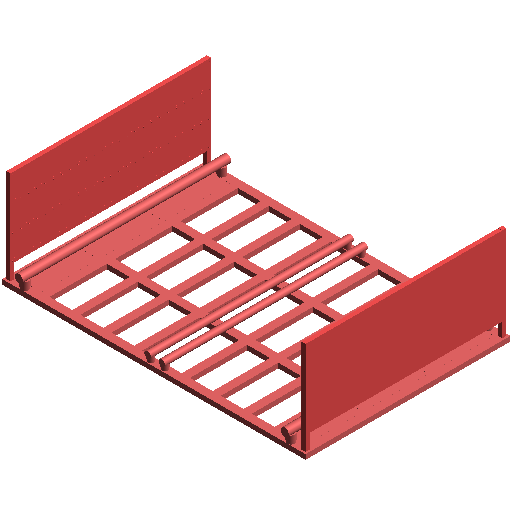

Family Screenshot

Family Parameters

Product Parameters

Identify Data

• Type Annotation
• URL
• Description
• Type Image Annotation
• Model
• Cost
• Manufacturer
• Component Code

Dimensions

• Thickness: 60 mm
• Length: 3600 mm
• Top Intersection Angle: 32.47°
• Bottom Intersection Angle: 32.47°
• Slope Angle: 0°
• Railing Height: 750 mm
• Width: 2400 mm
• Additional Dimension: 3,123,580 mm

Construction

Pillar: 0
