Category: BIM Family Library
File size: 900KB
File format: .rfa
Family Download
Bereji.rfa
Extraction code: vbk6
The Bailey frame, also known as the “prefabricated highway steel bridge,” was originally referred to as the “321” highway steel bridge. It is a military-ready steel bridge widely used in our country. The Bailey frame consists of steel components that form modular units, which can be assembled into various structures by connecting these units together.

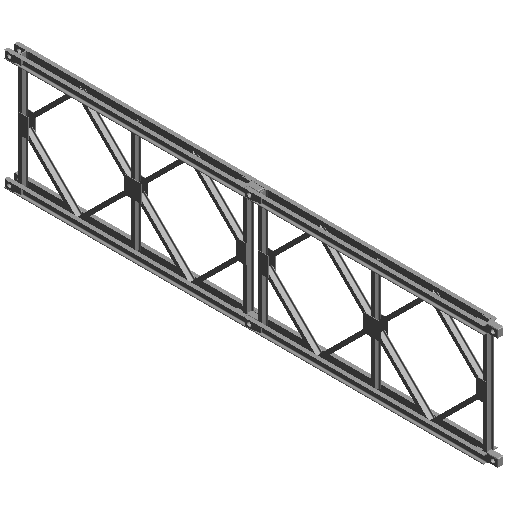

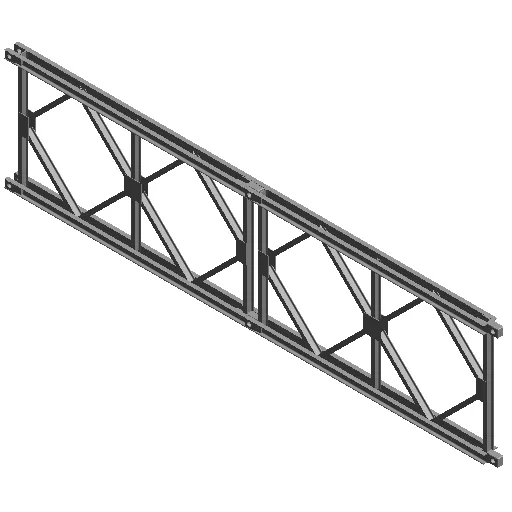

Family Screenshot
Family Parameters
Product Parameters
Identification Data
Annotation, Component Code Description, Model, URL, Cost Type, Image Type, Annotation, Manufacturer
Data:
Structure height: 1400 mm
Other:
Piece: 2
Constraint:
Length: 6000 mm
Bereji.rfa
