BIM Data: Revit Family Library for Water Collection Wells (.rfa)

Category: BIM Family Library

File size: 288KB

File format: .rfa

Family Download

File name: Collecting well.rfa

Extraction code: cpvr

Introduction: The collecting well, also known as a sump pit or collecting well, is a large-diameter well designed to collect and store groundwater or seepage water.

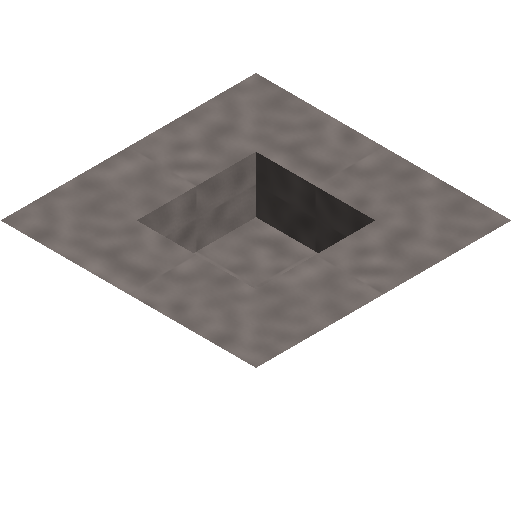

Family screenshot

Family Parameters

Product Parameters

Dimensions:

B: 2300mm

A: 3900mm

Identify Data

Description | Type | Annotation | Manufacturer | Cost | Component Code | Type | Image | Model URL

Collecting well.rfa
