BIM Data: Revit Family Library – Gate Valve.rfa

Category: BIM Family Library

File size: 1.01MB

File format: .rfa

Family Download

Gate valve.rfa

Extraction code: jx8x

Introduction: A gate valve is a component designed to open and close by moving perpendicular to the flow of fluid. It functions only in fully open or fully closed positions and cannot be used for flow regulation or throttling.

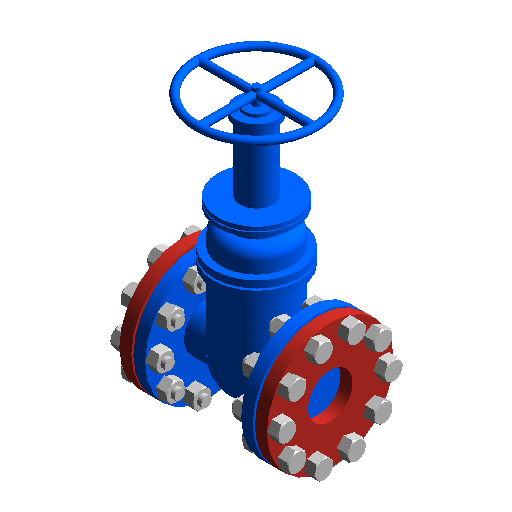

Family Screenshot

Family Parameters

Product Parameters

Identify data

Annotations include component code type, annotation model, URL, cost type, image manufacturer.

Other

Number of bolts: 10
Radius values: 8105.3mm, 597.5mm, 3116.6mm, 782.5mm, 637.5mm, 18.4mm, 256mm, 105.5mm, 4117mm
Heights: 4478.82mm, 3269mm, 526.9mm, 216.14mm, 680.83mm, 1538mm
Thickness: 216.14mm, 321.52mm, sealing surface thickness: 3mm, flange thickness: 26mm, thickness: 110.76mm
Flange diameter: 285mm
Flange lookup table: CHS2 Flange Raised Face – Integral – GI – PN 10
Flange radius: 142.5mm

Machine

K coefficient loss method 1 applies when temperature ≤ 200°C.
CK coefficient table for flange gate valve working pressure: 1MPa.
Applicable media: water, steam, oil.

Dimensioning

Open height: 538mm
Valve length: 280mm
Bolt side length: 15mm
Nominal diameter: 150mm
Handwheel diameter (open): 250mm
Screw length: 26mm
Close height: 568mm
Nominal radius: 75mm

Material and Decoration

Materials include valve handwheel and valve body.

Graphics

Annotation scale is used.
