BIM Data: Revit Family Library for Power Transformer Models (.rfa)

Category: BIM Family Library

File size: 2.20MB

File format: .rfa

Family Download

Power Transformer.rfa

Introduction: A power transformer is a static electrical device designed to convert an AC voltage (or current) from one value to another or multiple different values, while maintaining the same frequency.

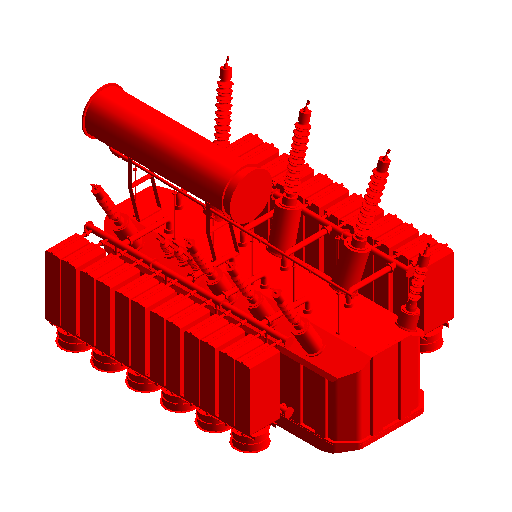

Family Screenshot

Family Parameters

Product Parameters

Identification Data

• Cost
• Manufacturer
• URL
• Type
• Image Annotation Type
• Annotation Component Code
• Model Description
• Routine
• Distribution Panel Name
• Peripheral Installation

Material and Decoration

• Porcelain Bottle Material
• Main Body Material
• Text
• Material Code
• State Grid Standard
• Material Description
• Procurement Quantity
• Unit Name
• Input Person
• Standard Material Description
• Personnel
• Professional Design Code
• Input Date
• Remarks
• Project Division
• Material Type
• Model and Specification
• Technical Document

Electrical – Circuit

• Rated Short-Circuit
• Feeder Neutral Busbar
• Distribution System Line Prefix
• Busbar
• MCB Rated Value
• Line Naming
• Maximum # 1 Pole Circuit Breaker
• Line Prefix Delimiter
• Secondary Feeder Strip
• Grounding Busbar
• Main Type Neutral Rated Value Modification
• Main Line

Electrical

• Watt
• Voltage

Power Transformer.rfa
