BIM Data: Revit Family Library for Support Pier.rfa

Category: BIM Family Library

File Size: 956 KB

File Format: .rfa

Resource Download

Support Dun.rfa

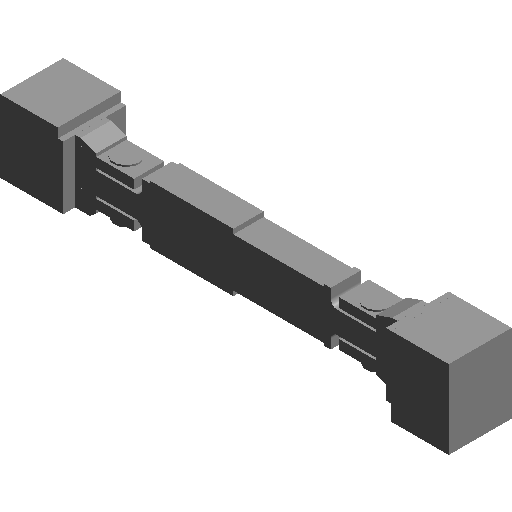

Resource Screenshot

A support pier typically serves as a base for water supply and drainage pipes (including fire protection pipes) that are either buried or installed on rooftops. It also supports lightning protection belts and is commonly prefabricated using bricks or concrete.

Resource Parameters

Product Parameters

Identification Data:

• URL
• Cost
• Type
• Image
• Component Code
• Description
• Manufacturer
• Model
• Annotation Type
• Annotation

Dimensions:

Upper pier height: 700 mm

Lower pier height: 700 mm

File: Support Dun.rfa
