BIM Data: Revit Family Library – Truss.rfa

Category: BIM Family Library

File size: 612KB

File format: .rfa

Resource Download

Truss.rfa

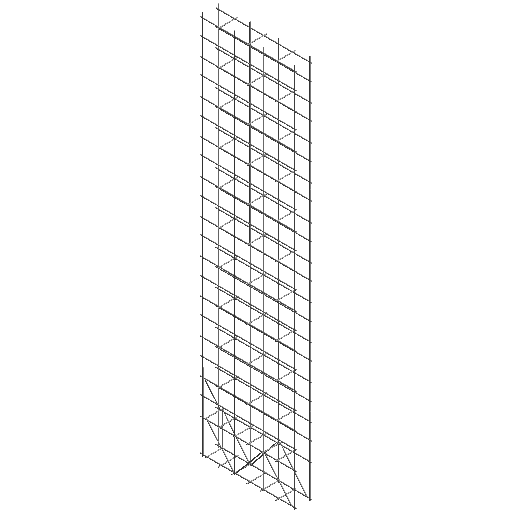

Resource Screenshot

A truss is a structural framework made up of rods connected at both ends by hinges.

Resource Parameters

Dimensions:

• Step height: 1820 mm
• Spacing: 1000 mm
• Crossbar radius: 18 mm
• Height: 861.90 mm
• Radius: 24 mm

Identification Data:

• Component Code
• Description
• Annotation Type
• Image URL
• Manufacturer
• Type Annotation
• Cost Model

Truss.rfa
