BIM Data: Revit Family Library for Accessibility Ramps (.rfa)

Category: BIM Family Library

File size: 292KB

File format: .rfa

Resource Download

Accessible Ramps.rfa

Resource Screenshot

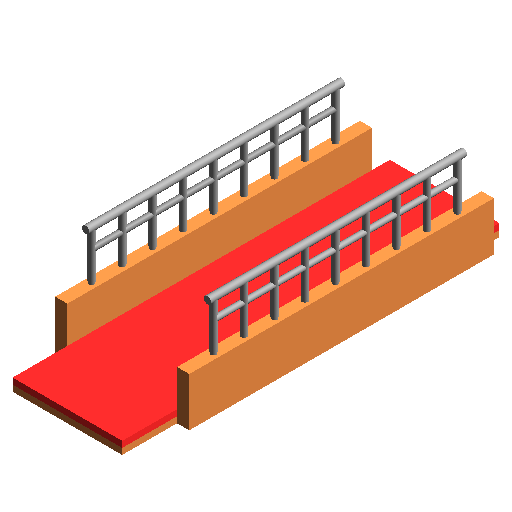

Accessible ramp

According to general civil design standards, the slope ratio for outdoor ramps must not exceed 1:10, while indoor ramps should not exceed 1:8.

Family Parameters

Product Parameters
Identification Data
Creator: Ethnic

Type: Image

Instructions

Component Code

Annotation Marks

Model

URL

Type Annotation

Cost

Manufacturer

Other Specifications:
Height of Railing A_023: 1280mm
Height of Wall 023: 800mm
Height of Railing 023: 1600mm

Material and Decoration:
Carpet Material: Cotton (Carpet_023)
Wall Material: 023
Railing Material: 023

Accessible Ramps.rfa
